Huron Speed V4 T4 Turbo Piping for 99-13 GM Silverado/Sierra
*Fits 2wd, 4wd, AWD, 1500 and 2500, 4.8L, 5.3L, 6.0L trucks!
*NOTE: Hot-side piping only
New updates to the 1999-2013 GM Silverado 5.3L Truck T4 single kit:
*Updated crossover. This is a 2-piece design featuring a new design double-slip connection. This style of connection allows expanding and contracting without leaking allowing for some movement as well as a very easy installation and alignment to the manifolds. Not to mention improved ground clearance and no worries of a flex section failure.
*DP connection tubes for OEM catback connections! Our previous kits would only supply a connection tube for the newer style ball flange from GM, we now offer styles for the 99-07 Classic body w/ 2-bolt flange and also 09-13 Newer body w/ ball/socket flange as an option if you wish to add one in.

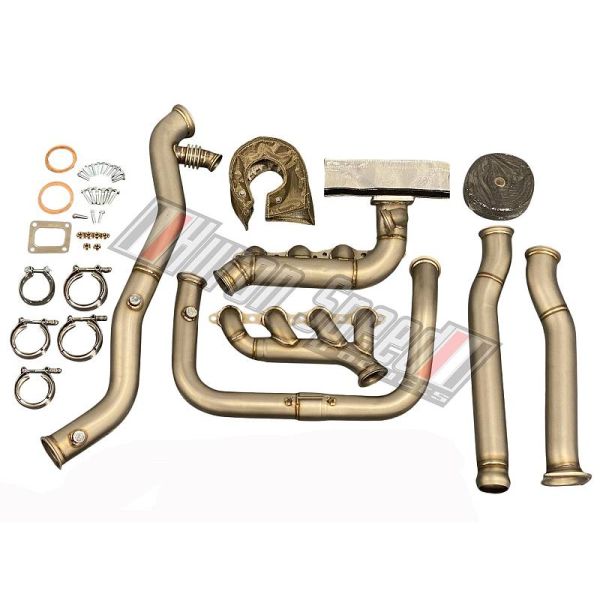

V4 T4 Kit Components:
-Stainless .120 wall Passenger turbo log and Stainless drivers side manifolds w/ interlocking V-band flanges
-New improved Stainless crossover with double-slip connection for easier install and alignment of interlocking V-band flanges
-3" Stainless dp with wastegate recirculation and bung for wideband O2 sensor
*Optional 2nd piece 3" downpipe to connect to OEM Catback location.
-All required v-band Clamps
-Included roll of heat wrap
-Included T4 turbo blanket
-Hardware to Install
*Optional custom A/C line to provide plenty of clearance without having to hassle with massaging your OEM hardline
Features & Benefits of the Huron Speed Truck V4 Intercooled turbo kit:
*Extra thick .120 wall stainless steel turbo manifold will have no issues holding up to the high heat and weight of the turbocharger. Worries about cracking manifolds is a thing of the past!
*Wastegate port is in the line of flow at the front of the manifold which will collect exhaust gasses from the entire system (both banks) as well as using a larger 44mm flange to control boost. No need to worry about boost creep issues!
*Wastegate tube features a nice bellow in line for an easy install and alignment of the wastegate recirc. with the downpipe for the recirculating WG discharge!
*No flex is used in the crossover pipe for worry of blowing. Added double slip to allow easy alignment, seal, and connection to the manifolds.
*Recirculating the WG Discharge into the downpipe is a STANDARD feature!
*Bungs for Primary O2 Sensors AND for a wideband O2 with plug is a STANDARD feature!
*System as a whole was made to provide a clean looking install, using great materials, built to make for an easy install without having to fight aligning pipes together along with easy to install v-band clamps. Boost control with a proper wastegate placement was high on the list to prevent boost creep.
**Piping kit only, requires other items noted to run, vehicle will not run without these outside sourced items completed by you, therefore sold as show only.
**Retains factory Air Conditioning, may require some minor massaging to OEM hardline near the dryer depending on year OR add on our Custom A/C Line for better clearance around your downpipe!
More Information
| Part Number | V4T4TRUCK-HOT |
|---|---|
| Brand | Huron Speed |
| Type of Part | Turbo Kits |
| Engine Fitment | 4.8, 5.3, 6.0 |
| Length | 42 |
| Width | 24 |
| Height | 20 |
| Weight | 105.000000 |
