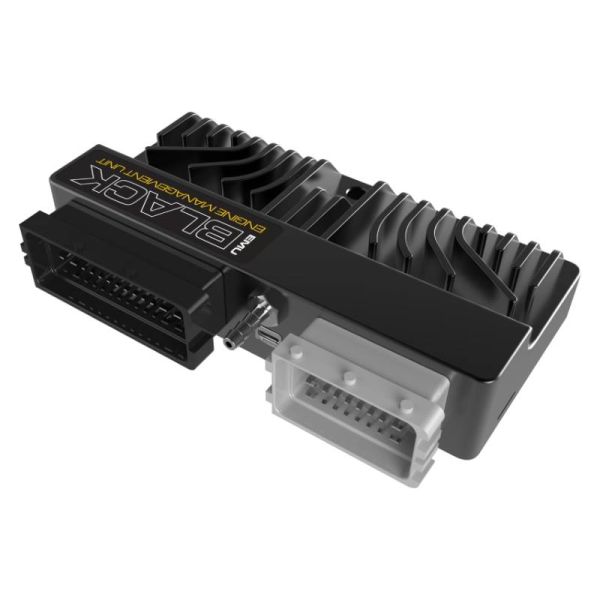

1ZZ 2ZZ MT ONLY ECU Master BLACK Direct Connect Stand Alone ECU
**If you have an Automatic or SMT, or a 2003-2006 Corolla/Matrix/Vibe, you need the Paralell kit here!
This is the latest kit, which fits the models listed below and completely eliminates any need for the stock ECU. The ECU Master is in charge of all engine and ecu-related body functionality. AC, fans, gauges, ABS, Air Bags etc all work normally. Harness is a direct connection rather than a parallel connection so it is tidier and more compact.
Does NOT work with automatic or SMT. As with all ecu master installs, this is for off-highway use and has no OBD functionality, not emissions legal.
Fitted and Tested Model:
2000-05 MR2 Spyder (MR-S) – Manual Only (USA and overseas)
2000-05 Celica GT (1ZZ) Manual Only (USA and overseas)
2000-02 Celica GTS (2ZZ) Manual Only (USA and overseas)
2003-05 Celica GTS (2ZZ) non-USA models with cable throttle (USA 03-05 models have electronic throttle and different wiring)
2000+ non-USA market Corolla models equipped with 1ZZ-FE, 2ZZ-GE, 3ZZ-FE and 4ZZ-FE engine and 3-row ECU connectors . This includes Runx, Sportivo, TS and Compressor models. (minor changes may be needed for some outputs like fans, etc, traction control doesn't work for a ferw oddball models)
2000+ non-US market Corolla models equipped with 1ZZ-FE, 2ZZ-GE, 3ZZ-FE and 4ZZ-FE engine and 3-row ECU connectors . This includes Runx, Sportivo, TS and Compressor models.(traction control doesn't work for a ferw oddball models)
Does not fit ANY North American Corolla models
1ZZ 2ZZ MT ONLY ECU Master BLACK Direct Connect Stand Alone ECU?
These units are normally in stock.
This combo includes custom direct fit plug n play harness with auxiliary wideband connector for easy install
WIDEBAND sensor and extension kit sold separately (STRONGLY recommended)
Base maps provided (basic maps available now, more in development) free with purchase
EMU Black features sophisticated strategies for drive-by-wire throttles, providing a wide range of control with advanced algorithm reliability (fault / error) and failsafe provisions. System capabilities will increase over time because of the ease of upgrading (free) firmware (eg. New strategies, trigger patterns, CAN-Bus data streams).
The EMU Black is one of the best values in engine management available anywhere. Built-in hardware includes a 4 bar MAP sensor (for reading manifold pressure up to 43 pounds of boost), built-in wideband controller (just add your choice of a Bosch 4.2 or a 4.9 sensor, no external controller needed), 6 built-in high current ignition drivers (can drive smart or passive coils, up to 12 smart coils for waste spark), 2 EGT inputs, CAN and Serial on board, on-board Drive By Wire control, and much more. All of these features in a beautiful CNC Aluminum enclosure that’s small enough to fit in your hand.
SPECIFICATIONS:
Operating temperature range: AECQ100 Grade2 (-40 to 105C)
Reduction of torque: cutting the ignition using the 3D map (16×20)
Sensitivity control: with 10 positional rotary switch
BOOST CONTROL:
‘Boost ref’ and ‘target-tables’: 2 sets of maps 10×10 (TPS vs RPM)
Control Strategies: Open / Closed loop (PID based)
Corrections: Gear, VSS, IAT, EGT, TPS, RPM
CAN BUS:
CAN standard: 2.0A 125, 250, 500, 1000 kBps
Supported protocols: CAN ECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEM
Supported vehicle protocols: E46 BMW, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, R53 Mini Cooper, Fiat 500, Renault Clio, Lotus, Ford Fiesta, Ford ST, EVO X (AYC support) and many more …
ENGINE PROTECTION:
Lambda guard: Engine protection for lean conditions, safety strategies for fuel enrichment, partial throttle closure, and reduction of boost pressure
User-definable critical values for sensors: Yes
Displaying error or critical value:
Yes (user definable)
Overtemp protection:
Yes (Oil Temp and CLT), definable by the user, RPM limit
Protection for low oil pressure:
Yes, definable by the user, turn off the engine if necessary
Low Fuel Pressure Protection:
Yes, delta fuel pressure compensation, RPM limit, turn off the engine if necessary
Protection for high EGT:
Alarm, per cylinder fuel trim, boost limit
FLEX FUEL:
Measurement of ethanol content: Yes
Fuel Density Compensation: Yes
Blending between maps: VE, IGN, Lambda / AFR, Boost, Cranking fuel, ASE, Warmup
