2006-2013 C6 Corvette Z06 UPP Twin Turbo Kit
TAGS: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, C6 Corvette Z06, LS7, 7.0L, Twin Turbo Kit, Under Pressure Performance, UPP Turbo System
Details

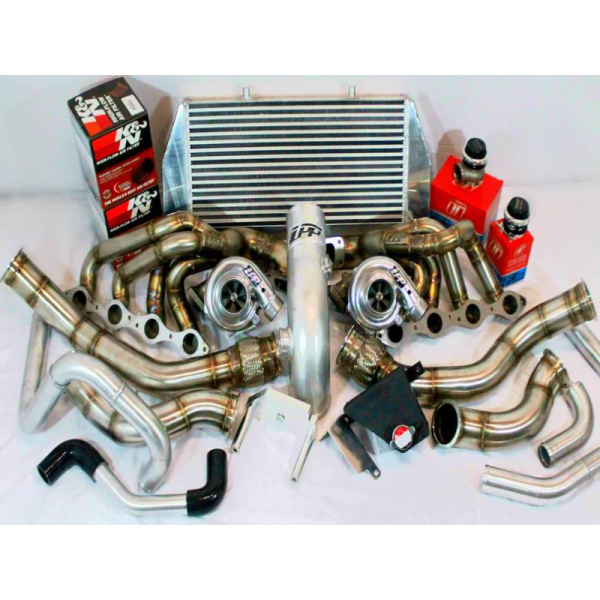

C6 Z06 Twin Turbo Kit for the 2006-2013 Corvette by UPP
The UPP C6 Z06 twin turbo system features full T304 stainless steel schedule 10 tubular manifolds. It made 710WHP on a stock C6 LS7 running on pump gas at only 6.5 PSI!
UPP's variety of turbo options have your back for virtually any power level you want. Choose from the drop-down list, or build the kit around what's on the shelf in your garage. We even offer full-framed T4 capability with this kit!
UPP Turbochargers are backed by a 2 YEAR WARRANTY. Hot and cold side plumbing come with an incredible LIFETIME guarantee.
More Efficient
Why choose turbos over a supercharger? This kit achieved FULL BOOST by 2800 RPM-- far sooner than a centrifugal supercharger system. This results in a better power curve, greater torque, and more power straight to the wheels!
Do-It-Yourself
The UPP C6 twin turbo kits are custom tailored to fit your specific needs. Already have your turbos? Just need intercooler piping? They are offered "a la carte" options for all turbo systems so you end up with just the parts you need to get your vehicle up to speed!
Style
You want to stand out from the rest, correct?! The UPP Z06 kit has a top mount, "in your face" design sure to draw a crowd whenever you pop the hood.
Tuning
Unlike our competitors, the UPP twin turbo setup doesn't come with a "cookie cutter" tune. They understand that everyone has individual goals, and that those goals may change, so they made this system fully customizable. UPP believes that every system should be individually tuned based on your specific needs. You hold the power to make this system as mild or wild as you desire!
Service & Support
The only thing more outstanding than our performance parts is our customer service team! These turbos come with a 2 YEAR WARRANTY, and an oustanding lifetime warranty on manifolds and piping. We have someone waiting by the phone Monday through Friday, from 9AM to 5PM EST to answer sales, support, and warranty questions.
WHAT WILL I NEED FOR A COMPLETE C6 Z06 TURBO KIT?
• Your choice of turbochargers
• 2x Stainless Steel Tubular Manifolds
• 3" Down-Pipes
• 2x 7PSI TurboSmart 40mm Wastegates
• 1x TurboSmart Race Port BOV
• FIC Fuel Injectors (From 60 - 190 lb/hr)
• 1x TurboWerx Oil Return Pump
• 2x K&N Air Filters
• Front Mount Air-to-Air Intercooler
• Intercooler Plumbing
• 3-Ply Silicone Couplers
• Stainless Steel T-Bolt Clamps
• Stainless Steel Oil Feed/Return Lines with AN Fittings
• Spark Plug Wires
• Coil Pack Relocation Kit w/ Valve Vanity Covers
• Radiator Vanity Cover
• Alternator Relocation Bracket
• Power Steering Reservoir Relocation Bracket
• Brake Fluid Reservoir Heat Shield
• Aluminum Coolant Overflow Tank
• All Installation Hardware
• Battery Relocation Kit
• Vanity Covers - for a stealthy & stylish install!
NOTES:
WE BUILD THESE ON A MOCK UP MOTOR BUILT TO ORDER. CUSTOMER WILL NEED TO ENSURE THEY USE THE SAME SIZING OF TURBO HOUSING. WE USE A T3 T31 NARROW FRAME 4 BOLT EXIT AND USE OUR 4 BOLT TO V BAND ADAPTER WHICH WILL BE INCLUDED.
WASTEGATE PROVISON ON LEFT SIDE IS ON THE TURBINE HOUSING AND WE WILL EITHER NEED CUSTOMER SUPPLIED TURBO WHILE BUILDING OR CUSTOMER WILL HAVE TO INSTALL ONTO THE TURBINE HOUSING THEMSELVES.
ALSO THIS KIT ***REQUIRES*** CERAMIC COATING ON ALL HOTSIDE. MANIFOLDS. DOWNPIPES. TURBINE HOUSINGS - $750 Option
FAILURE TO DO THIS WILL CAUSE HEAT ISSUES AND POSSIBLE PAINT MELTING ETC
More Information
| Brand | Under Pressure Performance (UPP) |
|---|---|
| Type of Part | Turbo Kits |
| Engine Fitment | LS7 - Z06 |
| Length | 42 |
| Width | 24 |
| Height | 20 |
| Weight | 105.000000 |
