2006+ Hemi Challenger/Charger X2 Dual 400LPH Fuel Pump Module | DeatschWerks
TAGS: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, Dodge Charger, Challenger, 300 Hemi 5.7L, 6.1L, 6.4L, Dual Fuel Pump Modules, 400LPH, Fuel Return System, DeatschWerks, 9-000-7060
Details

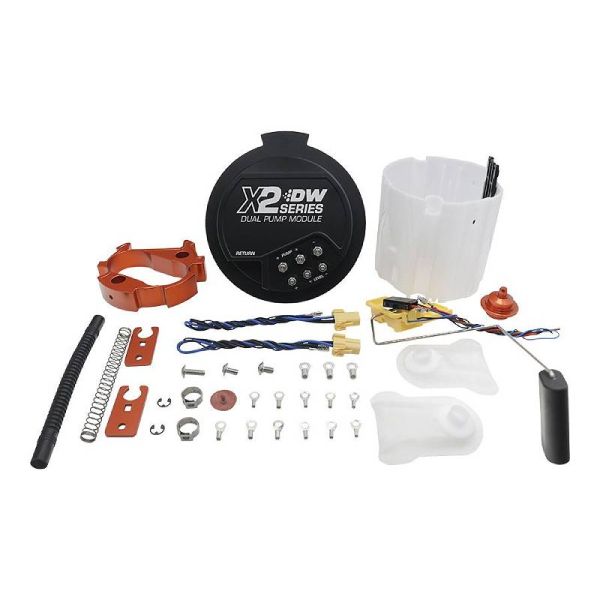

2006+ Hemi Challenger/Charger DeatschWerks X2 Dual 400LPH Fuel Pump Module - 9-000-7060
Billet top hat and billet center section mate with OE lower bucket to combine the best features of OE and Aftermarket into a 1000HP Fuel Solution.
Billet Top Hat:
• 5/16” Male Quick Connect feed and -6AN
• ORB return ports
• M5 stainless bulkhead wiring studs
• Fits OE module retaining ring
• Matte black anodized and laser etched graphics
Billet Center Section:
• Made to fit DW400 pump
• DW Orange anodized hardware
OEM Lower Bucket Included:
• Zero cutting and modifying OE components
• OE fuel level sender
• Retains venturi powered “surge bucket fill”
• Retains saddle transfer pick up
• Proven effective to below 1/8 tank
Return Plumbing Kit (Required):
• Includes lines, fittings, regulator, filter, and pressure gauge
• Available in 5/16” Male Quick Connect Feed and -6AN ORB Return with either CPE or PTFE line
Technical Specifications:
• Material: Anodized Aluminum
• Feed Fitting: 5/16" Male Quick Connect
• Return Fitting: -6AN ORB
• Pump Fitment: DW400
• Pump Wiring: M5 Power & Ground Terminals x3
• Fuel Level Wiring: M4 Terminals x3
• Fuel Level Sensor: OEM Resistance, Included
• Saddle Pick Up: OEM Siphon Hose Provisions
• Flow at 58psi: 681 LPH (2.99 GPM)*
• Proven effective to below 1/8 tank
Notes:
*Does not fit 6.2L Hellcat
**Only Fits 6.4L in 2020-2021 Challenger/Charger
***THIS PRODUCT MAY BE USED SOLELY ON VEHICLES USED IN SANCTIONED COMPETITION WHICH MAY NEVER BE USED UPON A PUBLIC ROAD OR HIGHWAY, UNLESS PERMITTED BY SPECIFIC REGULATORY EXEMPTION.
More Information
| Part Number | 9-000-7060, 9-401-7060, 9-401-614-7060, 6-613, 6-614 |
|---|---|
| Brand | DeatschWerks |
| Type of Part | Fuel Components |
| Engine Fitment | 5.7/6.1/6.4 |
| Length | 12 |
| Width | 10 |
| Height | 8 |
| Weight | 10.000000 |
