2007-2021 Tundra 5.7L DW65c 265LPH In-Tank Fuel Pump
Details

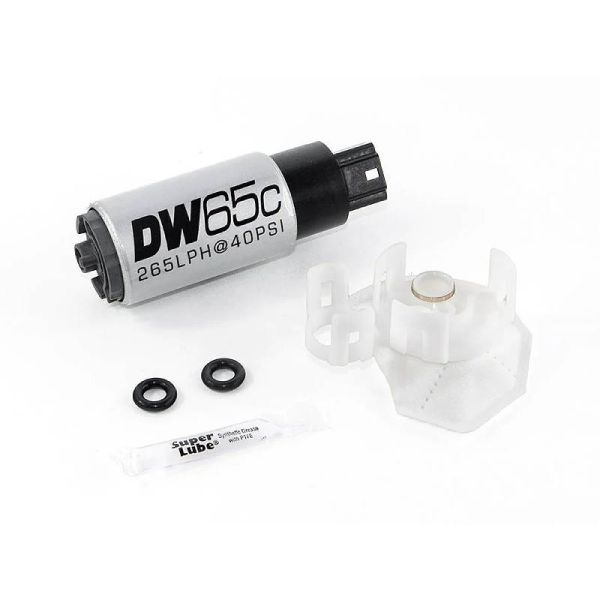

2007-2021 Toyota Tundra 5.7L, DW65c, 265LPH In Tank Fuel Pump by Deatschwerks
The DW65c was the industry's first compact fitment high flow pump. The compact fitment offers easy installation into many modern fuel pump modules where standard sized pumps (such as DW100, DW200, and DW300) cannot be fitted. The DW65c flows 265lph at 40psi and features a quiet and reliable turbine impeller which is compatible with pulse width modulated pump drivers. The pump also features an encapsulated armature for compatibility with ethanol based fuels. All DW fuel pumps are backed by a 3-yr no fault warranty.
Specifications
Weight: 10.1 oz (285grams)
External Materials: Electroplated Steel
Inlet Fitting: 7.7mm ID, 11.0mm OD
Outlet Fitting: 5/16" Hose Clamp
PRV Activation: 100 psi
Impeller Design: Single Scroll Composite Turbine
Connector Terminal: Spade Pos/Neg
Min Voltage Input: 6 Volts
Max Voltage Input: 18 Volts
Current Draw 40psi: 12 amps (13.5v)
*To ensure maximum voltage at the pump, a 12-gauge hardwire kit is strongly recommended for optimum performance
More Information
| Part Number | 9-651-1026 |
|---|---|
| Brand | DeatschWerks |
| Type of Part | Fuel Components |
| Engine Fitment | 5.7L |
| Length | 8 |
| Width | 6 |
| Height | 6 |
| Weight | 2.000000 |
