2008-2016 EVO X (EVO 10) TD06H-62X Billet Turbo Upgrade (700HP) | Boost Lab
TAGS: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, Mitsubishi EVO X, EVO 10, 4B11T, TD06H-62X Billet Turbo Upgrade (700HP), Boost Lab, BL-06H62-EVOX
Details

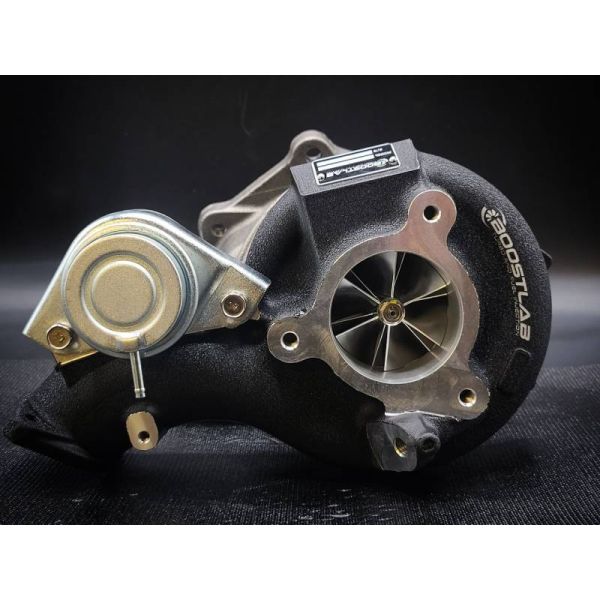

2008-2016 EVO X (EVO 10) BL TD06H-62X Billet Turbocharger - BL-06H62-EVOX
This is the PERFECT OEM Upgrade turbo for both street and track use for the EVO X: Introducing the new Boost Lab TD06H-62X Billet turbocharger for the Mitsubishi Evolution X! This is a direct bolt on replacement for your OEM TD05HA-152G6-12T turbo with no external modifications required for fitment. The BL TD06H-62X is the perfect direct replacement for the everyday enthusiast or diehard track racer wanting quick spooling powerful turbo.
Made from forged billet aluminum, the compressor wheel features a 6+6 blade count, slim hub, and extended tip exducer. The TD06H turbine wheel is a big step up in size from the stock TD05H. This cuts down on back pressure and allows the 4B11T engine to breathe to it's full potential. This results in a smooth powerband all the way to redline. New oil drain gasket, crush washers, and turbine inlet & outlet gaskets are included at no extra charge.
The BL TD06H-62X is capable of flowing over 700hp!
2008-2016 EVO X (EVO 10) BL TD06H-62X Billet Turbocharger Quick Specs:
• Compressor: Boost Lab 62X (62mm) Billet Compressor Wheel, Stock frame Evo-X compressor cover
• Turbine: MHI TD06H Performance Turbine Wheel, 12cm2 (.89 A/R) Ni-Resist Evo-X Turbine Housing, 1 Bar Internal Wastegate Actuator
Hardware & Gaskets:
• Copper Crush Washers
• Turbo Oil Drain Gasket
• Turbine Inlet Gasket
• Turbine Discharge Gasket
More Information
| Part Number | BL-06H62-EVOX |
|---|---|
| Brand | Boost Lab |
| Type of Part | Turbo Upgrades |
| Engine Fitment | 4B11T |
| Length | 16 |
| Width | 16 |
| Height | 16 |
| Weight | 35.000000 |
