2008-2021 WRX/STI DW X2 Series Dual DW300 Pump Module
TAGS: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, Subaru, Impreza WRX STI, DW X2 Series Dual DW300 Pump Module, DeatschWerks 9-301-7050
Details

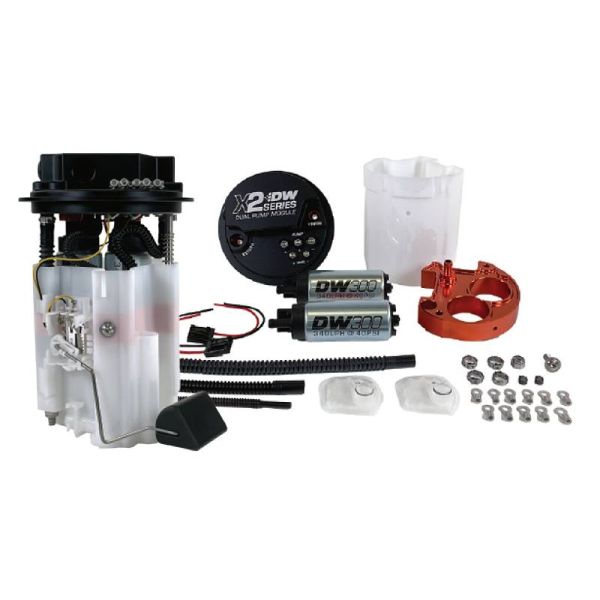

2008-2021 WRX/STI DW X2 Series Dual DW300 Pump Module - 9-301-7050
The new DeatschWerks X2-Series Subaru Module is now available for the 2008-21 model years, which includes accommodation for 2 pumps, integration of a return fuel line, and retention of ALL the functionality of OE module. The DW X2-Series Subaru Module consists of a top-hat, center section, and OE lower bucket. These 3 components work together to deliver the flow you need and the OE functionality you want.
• OEM Tank Fitment
• 345% Flow Over OEM 2008+ Subaru Impreza WRX STI
• Includes OEM Replacement Parts (Bucket, Level Sensor, etc)
• Fits 2008-2020 Subaru Impreza, WRX, Sti
• Keeps all OEM Sensor, Capacity and Surge Features
-- Specifications --
Material: Anodized Aluminum
Return Fitting: -6AN ORB
Feed Fitting: -8AN ORB
Pump Fitment: (2) DW100, 200 or 300 (39mm)
Pump Wiring: M5 Power and Ground Terminals x3
Fuel Level Wiring: M4 Terminals x2
Fuel Level Sensor: OEM Resistance, Included
Low Level Pickup: OEM Siphon and Return Fed
Saddle Pickup: Utilizes OEM Drivers Side In-Tank Module
Flow at 58psi: 630 LPH (29 Amp) 385% Flow Over OEM 2008+ Subaru Impreza WRX
*Optional AN Plumbing Kit Available PN#: 6-615 or 6-616 (CPE or PTFE Hose)
THIS PRODUCT MAY BE USED SOLELY ON VEHICLES USED IN SANCTIONED COMPETITION WHICH MAY NEVER BE USED UPON A PUBLIC ROAD OR HIGHWAY, UNLESS PERMITTED BY SPECIFIC REGULATORY EXEMPTION
More Information
| Part Number | 9-301-7050 |
|---|---|
| Brand | DeatschWerks |
| Type of Part | Fuel Components |
| Length | 13 |
| Width | 9 |
| Height | 8 |
| Weight | 6.000000 |
