2015-2021 Subaru WRX FA20 FP XR Ball Bearing Turbo Upgrade
TAGS: 2015, 2016, 2017, 2018, 2019, 2020, 2021, Subaru WRX, FA20, FP XR Ball Bearing Turbo Upgrade, Forced Performance
Details
2015-2021 Subaru WRX FA20 FP XR Ball Bearing Turbo Upgrade
FP Subaru FA20 XR Ball Bearing Turbo Upgrade
- Compressor wheel - 73HTZ
- Flow rating - 57LB per minute
- CW Measurements - 52.6MM Inducer / 73MM Exducer
- TW Measurements - 60.8MM Inducer / 54MM Exducer
- Compressor Housing - Factory Size Stock Appearing Cover
- Turbine Housing - 10CM FA20 Fitment Turbine Housing
- CHRA - Xona Rotor Ball Bearing
- Wastegate Actuator - 15PSI Tial MVI
- Oil Line - Included

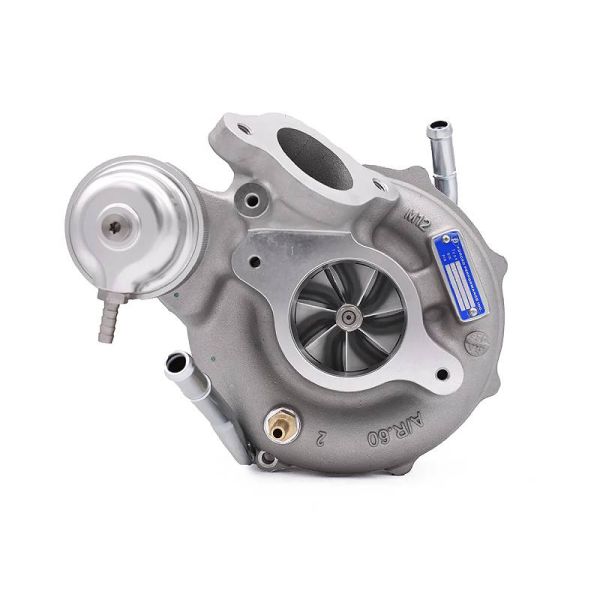

The XR FA20 Blueâ„¢ turbocharger for the 2015+ Subaru WRX features the 73mm HTZâ„¢ compressor wheel with a stock fitment, stock appearing cover coupled to the 10cm2 turbine section. This bolt on solution produces a great balance of spool and power and gives you the enhanced durability of the Xona Rotor Ball Bearing billet CHRA. The FA20 Blueâ„¢ flows 57LB a minute and is capable of producing upwards of 475WHP. This turbo comes with an oil line and gasket set, giving you everything you need to bolt it straight onto your car. The factory oil drain sump will be kept and reused, it is shown in pictures for fitment only and is not included.
The Dyno Graph in the pictures is a 2015 WRX tuned by Clark Turner.
Note: The FA20 Blue is developed specifically for the 2015+ WRX platform, it will not fit any other platform with the FA20 motor. Additionally it will not fit any vehicle with the EJ series of motors.
Porting is available and recommended for this turbocharger in order to fully realize the performance gains. Please take a look at our Porting Services page for examples.
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
More Information
| Part Number | FA20-FP-XRBB-TRB |
|---|---|
| Brand | Forced Performance |
| Type of Part | Turbo Upgrades |
| Engine Fitment | FA20 |
| Length | 18 |
| Width | 18 |
| Height | 18 |
| Weight | 40.000000 |
