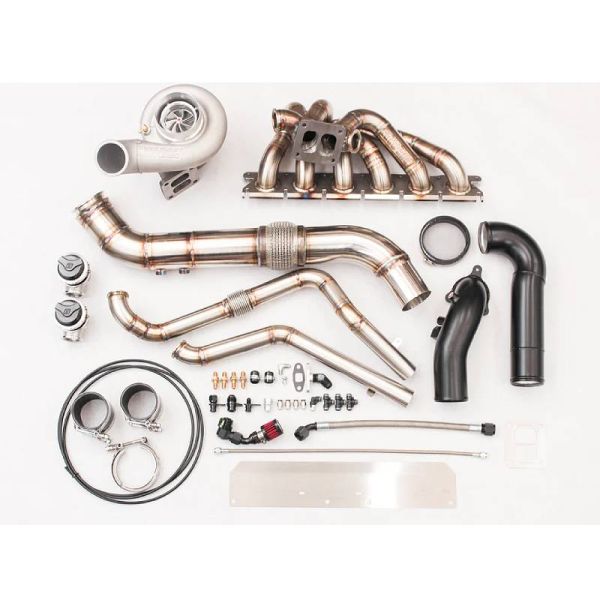

2015+ BMW M240i / 340i / 440i F Chassis B58 DOC Top Mount Turbo Kit
Details
2015, 2016, 2017, 2018, 2019+, BMW M240i / 340i / 440i, B58, F22, F23, F30, F31, F32, F33, F34, F35, F36 Chassis B58 DOC Top Mount Turbo Kit w- Tubular Manifold
Now available in 2 different runner sizes.
1.25 schedule 40 is a runner size that is standard in the industry and has been known to produce well over 1200hp. Note that the DOC 1.25 manifold has a high flow investment cast collector as part of the manifold.
1.5 schedule 40 is a much larger runner size that will produce less exhaust back pressure for guys really looking to squeeze every inch out of their setup. Contrary to popular belief using 1.5 runners does not produce more lag than 1.25.
All exhaust parts will come standard in polished. If you would like to add ceramic coating click the link below.
This kit will work with PTE only. Please do not try to adapt this kit with any other turbo or you will be faced with horrible fitment issues.
- PTE Turbo
- Turbosmart 40mm wastegates (2)
- Tubular stainless manifold
- 3.5” stainless downpipe
- Wastegate dump tubes (2)
- Charge pipe from turbo to TB (2)
- Silicone couplers and clamps
- Stainless oil drain line kit
- Stainless oil feed line kit
- Stainless coolant bypass line kit
- T4 gasket
- Turbo studs and nuts
- Exhaust v-band clamp
- 4” turbo screen
- Heat shield
- 1/4” nylon tubing and fittings (wastegate routing)
- Valve cover vent filter
- 3/4” boost caps (2)
More Information
| Part Number | DR-B58-FCHASSIS-TM |
|---|---|
| Brand | DOC Race |
| Type of Part | Turbo Kits |
| Engine Fitment | B58 |
| Length | 48 |
| Width | 24 |
| Height | 12 |
| Weight | 105.000000 |
