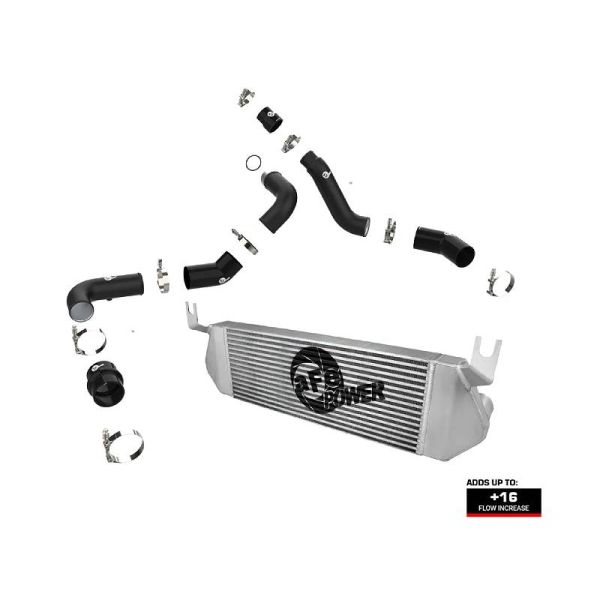

2016-2019 RAM EcoDiesel aFe BladeRunner GT Series Intercooler and Tubes
Details
2016, 2017, 2018, 2019, RAM 1500 EcoDiesel, 3.0T, Intercooler Upgrade, FMIC, IC Piping, aFe Power, 46-20492-B
The GT Series BladeRunner Intercooler Kit for the 2016-2019 RAM EcoDiesel 3.0L(td) features a 3in thick bar and plate core that outflows the OE intercooler system by up to 16%.
- TIG-Welded 3" Hot Side and 3" Cold Side Aluminum Tubes
- Features Premium Stainless-Steel Spring-Loaded T-Bolt Clamps And 5-Ply Silicone Couplings
- Features a Factory Style Quick-Connect With an O-Ring Seal
- 1/8" Npt Ports are Provided for Connecting Sensors or Water Methanol Injection
Heavy-Duty Billet Aluminum Inlet and Outlet - Intercooler Tubes are Powder Coated Wrinkle Black for Heat and Corrosion Resistance
- 3" Bar and Plate Core Design
End Tanks:
BladeRunner GT Series intercooler end tanks are constructed out of heavy-duty 3/16" TIG-welded aluminum plates.
Oversized Bar and Plate Core:
This BladeRunner GT Series Intercooler features a 3" bar and plate core that is extremely durable and allows for greater airflow over stock.
Billet Aluminum Fittings:
This BladeRunner Intercooler and tube kit features billet aluminium inlet and outlets with a quick-connect adapter and an o-ring seal to ensure a leak-free fit while maintaining superior strength and durability.
TIG-Welded:
100% TIG-welded for race proven strength and durability. TIG-welding provides the strongest welds, reducing stress cracks.
Flow and Performance:
The included tubes are powder coated wrinkle black and are constructed of mandrel-bent aluminum for maximum airflow. The smooth transition bends decrease turbulence and minimize pressure loss, increasing performance. Also featured are heavy-duty 5-ply silicone couplings and stainless-steel spring-loaded T-bolt clamps.
Perfect Fit:
This BladeRunner intercooler kit uses factory mounting locations for stability and easy installation.
Custom Appearance:
BladeRunner intercoolers are brush finished and along with charge pipes feature laser engraved aFe POWER logos.
When it comes to engineering for power, performance, protection and value, aFe POWER is the only choice.
EMISSIONS DISCLAIMER
This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.
More Information
| Part Number | 46-20492-B |
|---|---|
| Brand | aFe Power |
| Type of Part | Intercoolers |
| Engine Fitment | 3.0L |
| Length | 45 |
| Width | 32 |
| Height | 13 |
| Weight | 75.000000 |
