Skunk2 L15B Ultra Street Intake Manifold
Details

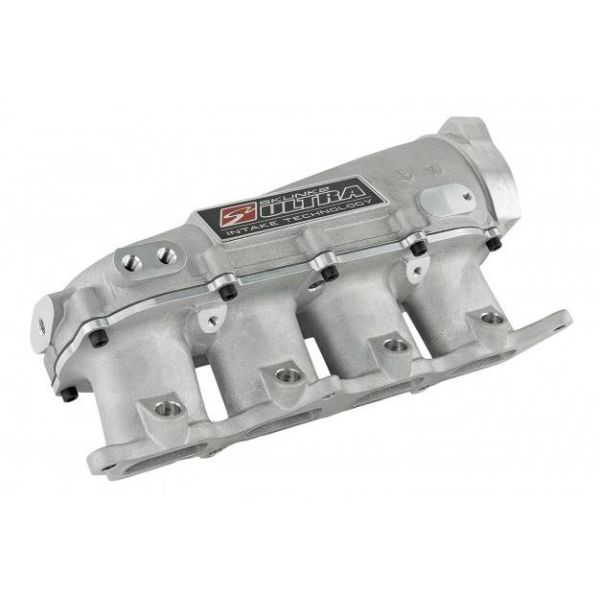

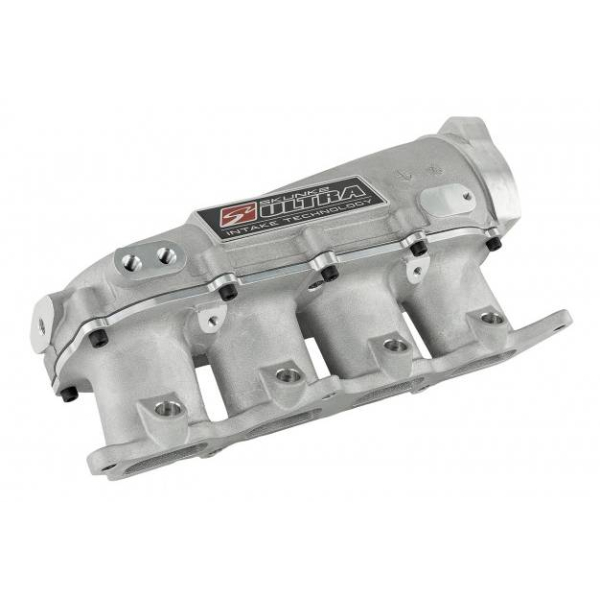

Skunk2 L15B Ultra Street Intake Manifold for 2016-2021 Civic 1.5L L15B - 307-05-1000
Ultra Series Manifolds ensure optimal intake performance for maximum horsepower gain versus traditional single piece intake manifolds. The Skunk2 modular cast aluminum intake manifold can be easily disassembled for ease of porting, cleaning, and plenum volume changes via the use of separately sold spacers. The expandable plenum gives the ability to perfectly curate intake air flow and volume for to maximize application potential.
Skunk2 Ultra Series Manifolds are the result of decades of research and development. Engineered using the latest in Computational Fluid Dynamics software and countless hours of dyno and real-world testing on race cars and street cars alike. Optimized plenum design evenly distributes airflow to all cylinders under dynamic load conditions.
Cast from high-grade 356 aluminum alloy due to its high strength, low weight properties and CNC machined for precision fitment. Thick-walled intake runners leave large allowances for porting to minimize chances of breakthrough and a larger 70mm throttle body opening offer maximum air flow.
Skunk2 L15B Ultra Street Intake Manifold for 2016-2021 Civic 1.5L L15B - 307-05-1000 Features:
• Modular 2-piece design w/ Removable Plenum
• Rotatable Plenum allows Driver-side or Passenger-side throttle body mounting
• 1.8L Plenum Volume
• Tapered 4-inch High-Velocity Runners
• Generously Cast Runner Walls for Porting
• 70mm Throttle Body opening
• Lightweight 356 Aluminum Alloy Construction
• High Grade Mounting Hardware
• Thermal Gasket Included
• 4x 1/8-inch NPT and 3x 1/4-inch NPT Accessory Ports
• Fits stock Throttle Body and Skunk2 Pro Throttle Bodies
** Optional Billet Aluminum Spacer Available in .5L Size
More Information
| Part Number | 307-05-1000 |
|---|---|
| Brand | Skunk2 Racing |
| Type of Part | Intake Manifolds |
| Engine Fitment | 1.5T |
| Length | 18 |
| Width | 14 |
| Height | 8 |
| Weight | 10.000000 |
