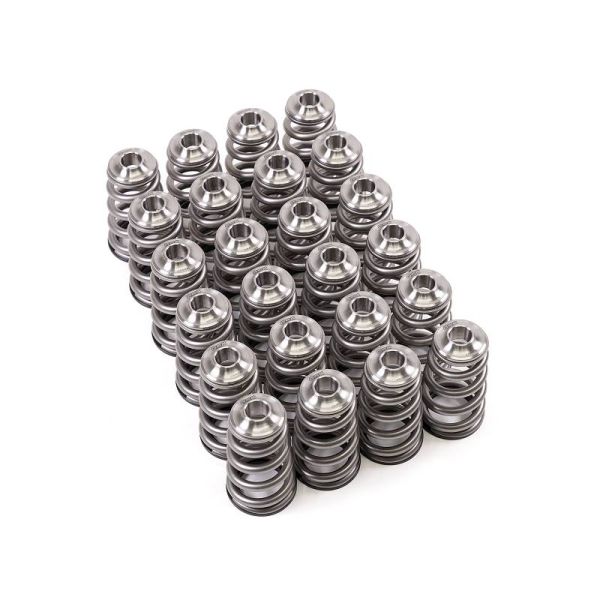

2016-2023+ 400Z / Q50 / Q60 VR30DDTT GSC Spring & Retainer Kit
TAGS: 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, Nissan 400Z, Infiniti Q50, Q60, VR30DDTT, GSC Spring & Retainer Kit, 5083, 9500 RPMs, 40 PSI Boost
Details
2016-2023+ 400Z / Q50 / Q60 VR30DDTT GSC Spring & Retainer Kit - 5083
Max RPM: 9,500 RPM
Max boost: 40 psi
91 lbs @ 1.297" install height
The GSC Power-Division Conical Valve Spring Kit with Ti Retainer for the Nissan VR30DDT includes 24 titanium retainers, 24 conical valve springs, and 24 valve spring seats.
True conical valve springs are not a new concept and are industry proven to provide several key advantages over traditional spring designs. A major advantage of conical springs vs. traditional cylindrical or beehive springs is the damping and removal of valvetrain harmonics. Of the three designs, conical springs are the front runners in valvetrain harmonic stability. Utilizing a varying coil diameter as well as coil spacing, a conical spring acts as a natural harmonic damper in the transfer of valvetrain shock. This translates to less stress, less wear, and a longer life of the included components. This level of protection is needed in today’s engines being pushed to their physical and mechanical limits by aftermarket modifications. Every GSC conical spring offers a super finished surface treatment to go along with the patented, multi-step heat treatment process. The finished product is an extremely reliable, high-performance valve spring allowing the users to push higher RPMs, use more aggressive cam profiles, and turn up higher boost pressures.
| GSC5083 Conical Valve Spring Kit with Ti Retainer W/ Chromoly Seat for the Nissan VR30DDTT | |||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 10.00mm lift | Maximum Valve Lift (in) |
| Conical | 0.786 | 1.297 | 91 | 221lbs @ 0.904" | 0.451 |
More Information
| Part Number | 5083 |
|---|---|
| Brand | GSC Power Division |
| Type of Part | Engine |
| Engine Fitment | 3.0L VR30DDTT |
| Length | 10 |
| Width | 5 |
| Height | 5 |
| Weight | 5.000000 |
