2017-2020 BRZ / FT86 HKS GTIII-RS Turbo Kit
TAGS: 2017, 2018, 2019, 2020 Subaru BRZ / FR-S / FT86 Turbo Kit, GTIII-RS, HKS, 11001-KT001
Details
2017-2020 BRZ / FT86 HKS GTIII-RS Turbo Kit - 11001-KT001
HKS has released a long-waited Bolt-on Turbo Kit with GTIII-RS turbine for 86/BRZ. GTIII-RS turbine that is the best match with 2L engine, special designed turbo housing, and other special parts are made by HKS special turbo technology. This kit is available from a stock to tuned engine. The engine output will reach 450ps when this kit is installed to a tuned engine.

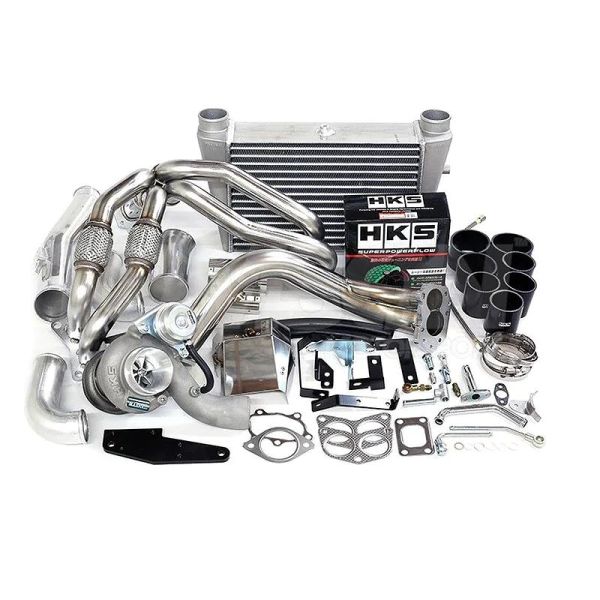

2017-2020 BRZ / FT86 HKS GTIII-RS Turbo Kit PARTS
GTIII-RS Turbocharger Assy with an actuator.
Oil & Water Piping Parts
Air Cleaner, Suction Pipe
Front-mounted Intercooler, Piping
Exhaust Manifold,
For 11001-KT001, CATless Extension
For 11001-AT005, Extension with CAT
Insulator Cover, Insulator Sheet
Gaskets, Brackets, Bolts, etc.
※This results were obtained through the in-house test.
The actual values may be different due to the measuring instrument and/or each vehicle's specifications.
MAX ENGINE OUTPUT
2.1L E/G + GTIII-RS : 334kw(454ps)/6400rpm
Stock E/G+ GTIII-RS : 251kw(342ps)/6600rpm
NA Stock : 136kw(185ps)/6800rpm
MAX TORQUE
2.1L E/G + GTIII-RS : 536Nï½¥m(55kgfï½¥m)/4600rpm
Stock E/G+ GTIII-RS : 391Nï½¥m(40kgfï½¥m)/4100rpm
NA Stock : 199Nï½¥m(20kgfï½¥m)/4100rpm
Stock Engine Test Vehicle Spec:
LEGAMAX SPORTS
FLASH EDITOR
EVC6 IR
I/J 440cc
LA CLUTCH
2.1L Engine Test Vehicle Spec:
2.1L Piston, Con'rod, Crankshaft, Camshaft, Gasket
SUPER FIRE RACING M45HL
Hi-POWER Muffler
Prototype Front Pipe, Prototype CATless Center Pipe
Reinforced fuel parts
FLASH EDITOR
EVC6 IR
This kit can be used with HKS S-TYPE OIL COOLER KIT.
※OIL COOLER KIT is NOT included in this kit.
※This is an image of a prototype and may differ from the actual product.
NOTES:
※Reinforced fuel parts such as injectors are required.
※Pressure sensor is required separately.
※Engine management parts are not included in this kit.
※Resetting is required.
※Vehicle modification is required in order to install this kit (Refer to the separated information.)
※Reinforced clutch is required to avoid slippage of the clutch disk that may occur due to significant torque characteristic change.
※It is strongly recommended to install an oil cooler to protect the engine.
※NOT CARB LEGAL. OFF ROAD USE ONLY! CAN NOT SHIP TO CALIFORNIA.
More Information
| Part Number | 11001-KT001 |
|---|---|
| Brand | HKS |
| Type of Part | Turbo Kits |
| Engine Fitment | FA20 |
| Length | 40 |
| Width | 20 |
| Height | 20 |
| Weight | 100.000000 |
