2020+ GR Supra A90 DW440 Brushless Fuel Pump Kit
Details

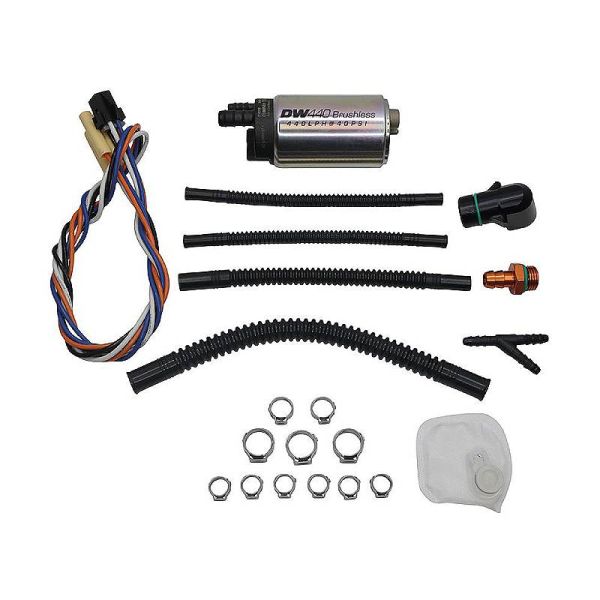

2020+ GR Supra A90 Deatschwerks DW440 Brushless Fuel Pump Kit
The DW440 brings brushless pump technology INTO the fuel tank. With a total height of only 4 inches (102mm), it is the only highflow aftermarket brushless pump that is easily retro-fitted into an OE pump module. Brushless technology reduces friction and heat, increases effeciency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow.
440LPH at 40psi, 13.8v, 620LPH at 40psi, 20v
Compact size is optimized for in-tank use
Universal bulkhead harness and fitment kit included
Compatible with all fuels including methanol and e100
No brushes + No commutator = Ultimate Durability
Weight: 9.2oz (260 grams)
External Materials: Electroplated Steel
Inlet Fitting: 8.5mm ID, 11.0mm OD
Outlet Fitting: 3/8" Hose Clamp
PRV Activation: >125 psi
Impeller Design: Single Scroll Composite Turbine
Connector Terminal: 4-Spade Brushless
Min Voltage Input: 8 Volts
Max Constant Voltage: 18 Volts
Max Periodic Voltage: 22 Volts
Note: Brushless pump must be used with a brushless pump controller (see part numbers C102, and C103)
More Information
| Part Number | 9-442-0901 |
|---|---|
| Brand | DeatschWerks |
| Type of Part | Fuel Components |
| Engine Fitment | B58 |
| Length | 8 |
| Width | 6 |
| Height | 6 |
| Weight | 4.000000 |
Reviews
Fitment
2020+ GR Supra A90 Deatschwerks DW440 Brushless Fuel Pump Kit
The DW440 brings brushless pump technology INTO the fuel tank. With a total height of only 4 inches (102mm), it is the only highflow aftermarket brushless pump that is easily retro-fitted into an OE pump module. Brushless technology reduces friction and heat, increases effeciency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow.
440LPH at 40psi, 13.8v, 620LPH at 40psi, 20v
Compact size is optimized for in-tank use
Universal bulkhead harness and fitment kit included
Compatible with all fuels including methanol and e100
No brushes + No commutator = Ultimate Durability
Weight: 9.2oz (260 grams)
External Materials: Electroplated Steel
Inlet Fitting: 8.5mm ID, 11.0mm OD
Outlet Fitting: 3/8" Hose Clamp
PRV Activation: >125 psi
Impeller Design: Single Scroll Composite Turbine
Connector Terminal: 4-Spade Brushless
Min Voltage Input: 8 Volts
Max Constant Voltage: 18 Volts
Max Periodic Voltage: 22 Volts
Note: Brushless pump must be used with a brushless pump controller (see part numbers C102, and C103)
