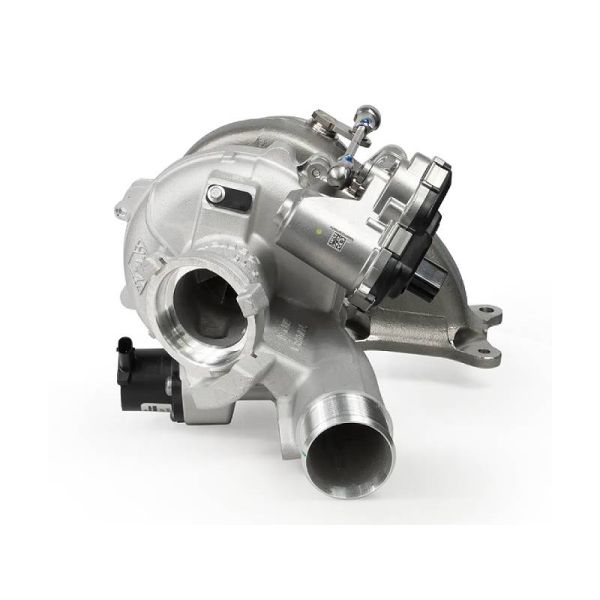

2022+ VW Golf GTi 2.0T EA888 Garrett PowerMax Turbo Upgrade
Found it for less but value our service?
Details
2022+ VW Golf GTi 2.0T EA888 Garrett PowerMax Turbo Upgrade - 917056-5002S
2020+ Volkswagen | Audi | Skoda | Cupra | Seat 2.0L EA888 Engine
Part Number: 917056-5002S
Supports up to 447BHP (333kW)
Introducing the Garrett PowerMax™ turbocharger upgrade for the 2.0L EA888 Evo4 engine platform. Engineered by enthusiasts, for enthusiasts, this turbocharger upgrade isn’t just about boosting your engine’s capabilities, it’s also about packaging it into your vehicle’s existing OEM setup. This complete turbocharger with electronic actuator can help the engine produce up to an impressive 447BHP (333 kW), as proven by on-vehicle results.
GTX Gen II compressor aerodynamics increase turbocharger flow by a staggering 32% compared to the OEM turbo. Embrace the future of power with the high-temperature Mar-M alloy turbine wheel, paired with state-of-the-art turbine aerodynamics and a robust twin scroll stainless steel turbine housing capable of withstanding up to 1050°C of heat. Elevate your driving game, and experience performance like never before with PowerMax™.
WARNING: Maximum allowable turbocharger speed is 186krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors sold separately.
Garrett PowerMax GT2260S Direct Fit Performance Turbocharger 2022+ Audi/Volkswagen 2.0L EA888 Evo4 Features:
• Complete assembly with electronic actuator
• Direct-fit turbo with 447BHP (333kW) capability (on-vehicle results)*
• +32% compressor flow compared to the OEM turbo
• GTX Gen II compressor aerodynamics
• Mar-M alloy turbine wheel and twin scroll stainless steel turbine housing rated up to 1050° C
• Latest generation of journal bearing rotating group with 360° reinforced thrust bearing
• +50% turbine flow compared to OEM turbo
*Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are based on actual on-vehicle testing.
SEMA Emissions Certified
*CARB Certification Pending
The Federal Clean Air Act prevents the modification of vehicles with products that impact emissions unless the product has demonstrated a reasonable basis for claiming emissions compliance. The EPA’s Tampering Policy provides guidance for such a demonstration, and SEMA Certified- Emissions is designed to provide documentation for assurance of 49-state legality when used as an OEM replacement.
Performance Results: Horsepower (On-Vehicle Results) Vehicle Modifications:
• Location: Germany
• GTI 2.0L TFSI (EA888 Evo4)
• 917056-5002S Turbocharger
• Stock intercooler
• Custom downpipe
• Stock fuel system
• Fuel – 98 octane unleaded
| PowerMax PN | Power | Model | Comp Ind | Comp Exd | Turb ind | Turb Exd |
|---|---|---|---|---|---|---|
| 917056-5002S | 447BHP (333kW) | GT2260S | 47mm | 60mm | 50mm | 45mm |
| Make | Model | Year | Region | Engine | OEM Turbo |
|---|---|---|---|---|---|
| VW | Golf GTI | 2022+ | North America | 2.0L EA888 Evo 4 L4 – Gas | 06Q145702B |
| VW | Golf GTI | 2020+ | Europe | 2.0L EA888 Evo 4 L4 – Gas | 06Q145702B |
| VW | Tiguan 2.0 TSI | 2020+ | Europe | 2.0L EA888 Evo 4 L4 – Gas | 06Q145702B |
| Audi | Q3 45 TFSI 2.0 | 2021+ | Europe | 2.0L EA888 Evo 4 L4 – Gas | 06Q145702B |
| Audi | TT 45 TFSI 2.0 | 2020+ | Europe | 2.0L EA888 Evo 4 L4 – Gas | 06Q145702B |
| Skoda | Kodiaq RS TSI 4×4 | 2021+ | Europe | 2.0L EA888 Evo 4 L4 – Gas | 06Q145702B |
| Skoda | Octavia RS | 2020+ | Europe | 2.0L EA888 Evo 4 L4 – Gas | 06Q145702B |
| Cupra | Leon 2.0 TSI | 2021+ | Europe | 2.0L EA888 Evo 4 L4 – Gas | 06Q145702B |
| Cupra | Formentor 2.0 TSI | 2021+ | Europe | 2.0L EA888 Evo 4 L4 – Gas | 06Q145702B |
| Seat | Tarraco 2.0 TSI | 2021 | Europe | 2.0L EA888 Evo 4 L4 – Gas | 06Q145702B |
More Information
| Part Number | 917056-5002S |
|---|---|
| Brand | Garrett |
| Type of Part | Turbo Upgrades |
| Engine Fitment | 2.0T |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 40.000000 |
