2023+ GR Corolla Carbon Fiber Inlet Duct | Forge
TAGS: 2023 and up, GR Corolla, 2021, 2022, 2023 GR Yaris, G16E-GTS, Carbon Fiber Inlet Duct, Forge Motorsport, FMINLD1
Details

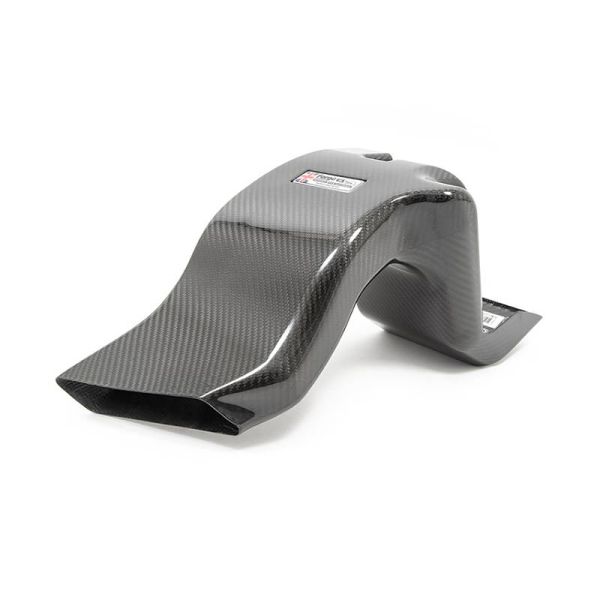

2023+ GR Corolla Forge Motorsport Carbon Fiber Inlet Duct - FMINLD1
After discussions with many GR Corolla / Yaris owners about airbox modifications, Forge Motorsport is proud to release the Toyota Yaris / Corolla GR Inlet Duct. The Forge inlet duct allows you to add an aesthetically pleasing carbon fibre part to your Corolla / Yaris GR’s engine bay and help keep your inlet temperatures down during spirited driving and whilst on the track or rally stage.
By utilising 3D scans and SolidWorks CAD, the Forge development team have been able to optimise the size of the inlet duct, creating an increase in uninterrupted cold air to be scooped into the stock airbox. 3D printed test parts were used alongside CAD simulation to ensure the optimum size and geometry. This inlet duct performance car part is much larger than stock with a close fit to the front bumper and airbox to ensure that the heat from the engine causes minimal effect.
During testing on track days, the original duct caused inlet air temperatures to be heavily influenced by heat soak and fluctuated dramatically. Meanwhile the Forge inlet duct kept the inlet air temperatures not only reduced but at a more consistent temperature. A reduced consistent temperature is of great importance because any high temperature peaks will cause the ECU to retarding the ignition and reduce the power you have available. The Forge inlet duct design incorporates a free-flowing path to both the upper and lower opening of the airbox, whereas the stock design has no flow management to the lower opening and the upper is small and not fully sealed. It is worth understanding that the lower opening is of far greater importance to the performance of your Yaris / Corolla GR. There is a vacuum operated flap which is activated when under full throttle conditions, therefore the Forge Motorsport Inlet Duct ensures that your Yaris is getting colder directed air when the engine needs it the most.
Data was collated and logged live by a passenger on a track day running in conjunction with an aftermarket intercooler on a 5 lap open pit session back to back against the stock inlet scoop (another 5 lap session). Inlet air temps had been reduced from 42°C to between 35 and 36°C. They even saw temperatures of up to 45°C on the stock duct. Fluctuation between temperatures on the stock inlet duct were greatly improved when air was fed to the secondary inlet scoop via the composite Forge Motorsport inlet feed.
Notes:
*For the U.S. Spec Toyota Corolla GR there was an addition of a slam panel added to the front support beam. Due to the addition of this item by Toyota the panel must be removed or trimmed to allow our inlet to fit. Below is an example of the trimming needed to allow the slam panel to stay in place.
More Information
| Part Number | FMINLD1 |
|---|---|
| Brand | Forge Motorsport |
| Type of Part | Intakes |
| Engine Fitment | 1.6T |
| Length | 20 |
| Width | 12 |
| Height | 12 |
| Weight | 8.000000 |
