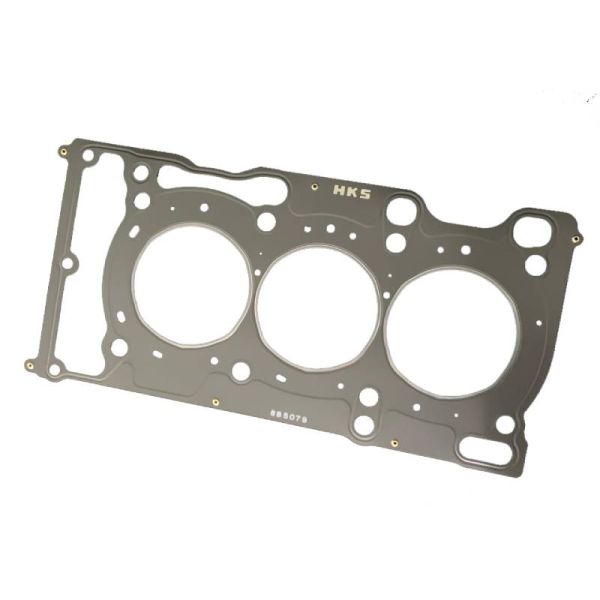

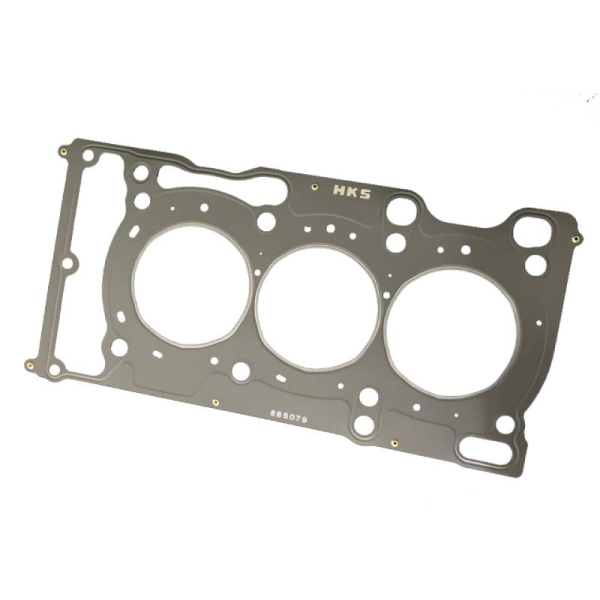

2023+ Toyota GR Corolla, G16E-GTS, Performance Head Gasket, Grommet Style, 0.8mm, 89mm Bore, HKS, 23002-AT003
It is a grommet-type gasket that can be used even if the boost is further increased with G16E-GTS for GR YARIS with high combustion pressure. GROMMET TYPE HEAD GASKET (t=0.8) for GR YARIS/G16E-GTS
It improves the sealing limit by securing the surface pressure of the gasket sealing surface by employing the grommet structure.
It put the shims at either end of the engine deck to apply the load evenly when tightening the head bolt to prevent the distortion of the cylinder head.
Engine
Thickness(mm)
Compression Ratio
Bore
Code No.
Manual
Remarks
G16E-GTS
0.8
ε=10.6
Dia. 89 (not round)
23002-AT003
Stock thickness t=0.85
More Information
Part Number
23002-AT003
Brand
HKS
Type of Part
Engine
Engine Fitment
1.6T
Length
20
Width
10
Height
2
Weight
2.000000
