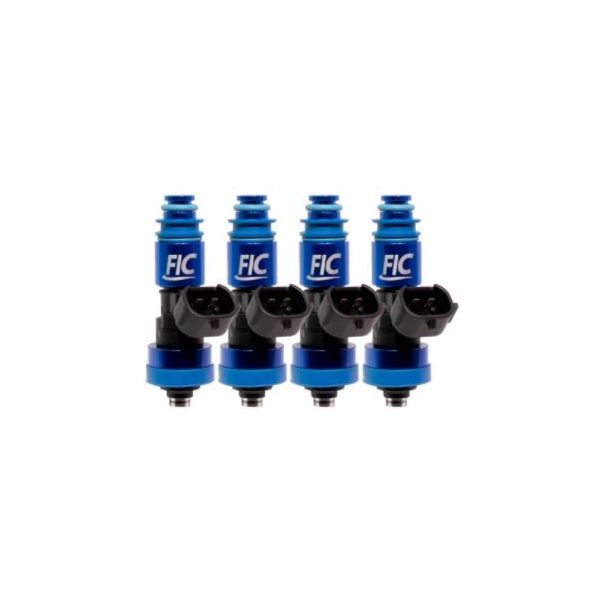

2150cc FIC Honda B, H, & D Series Fuel Injector Clinic High-Z Injector Set
Details
2150cc Honda (B, H, D) FIC's (Fuel Injector Clinic) Data Matched high performance fuel injectors featuring high impedance Bosch core, E85 compatible, with a lifetime warranty.
This massive high performance injector is in a class of its own when low end throttle response and short pulse width control is required. State of the art Data Match Technology dynamic flow matching is used during the production of these injector sets due their large flow rate. This significantly improves the ECU's ability to control these injectors in the sub 2ms pulse width area, typical of idle and part throttle conditions.
Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.
Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.
Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. For aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.
CAUTION! The internal construction of this 2150cc/min injector includes a seal that has been found to swell when in contact with MTBE from oxygenated fuels like Q16 or VP Import. This swelling causes a significant reduction in flow through the injector and therefore renders it unsuitable for use with MTBE oxygenated fuels. Please be sure to follow the care instructions for these injectors since there are potential corrosion issues that may arise from prolonged disuse while exposed to alcohol based fuels (E85, etc.)
| Fuel / Duty Cycle / Application | 4 Cyl Wheel Horsepower MAX |
|---|---|
| WHP on E85 at 43psi 90% DC NA | 963.96 Wheel HP |
| WHP on E85 at 43psi 90% DC Supercharged | 876.32 Wheel HP |
| WHP on E85 at 43psi 90% DC Turbo | 803.30 Wheel HP |
| WHP on E85 at 58psi 90% DC NA | 1113.37 Wheel HP |
| WHP on E85 at 58psi 90% DC Supercharged | 1012.15 Wheel HP |
| WHP on E85 at 58psi 90% DC Turbo | 927.81 Wheel HP |
| WHP on Gas at 43psi 90% DC NA | 1253.14 Wheel HP |
| WHP on Gas at 43psi 90% DC Supercharged | 1139.22 Wheel HP |
| WHP on Gas at 43psi 90% DC Turbo | 1044.29 Wheel HP |
| WHP on Gas at 58psi 90% DC NA | 1447.38 Wheel HP |
| WHP on Gas at 58psi 90% DC Supercharged | 1315.80 Wheel HP |
| WHP on Gas at 58psi 90% DC Turbo | 1206.15 Wheel HP |
More Information
| Part Number | IS115-2150H |
|---|---|
| Brand | FIC (Fuel Injector Clinic) |
| Type of Part | Fuel Injectors |
| Engine Fitment | B16, B18, B20, D16 |
| Length | 6 |
| Width | 8 |
| Height | 6 |
| Weight | 5.000000 |
