3.5 Inch V-Band Flange and Clamp Set - Comp Outlet
Details
PRODUCT DESCRIPTION:

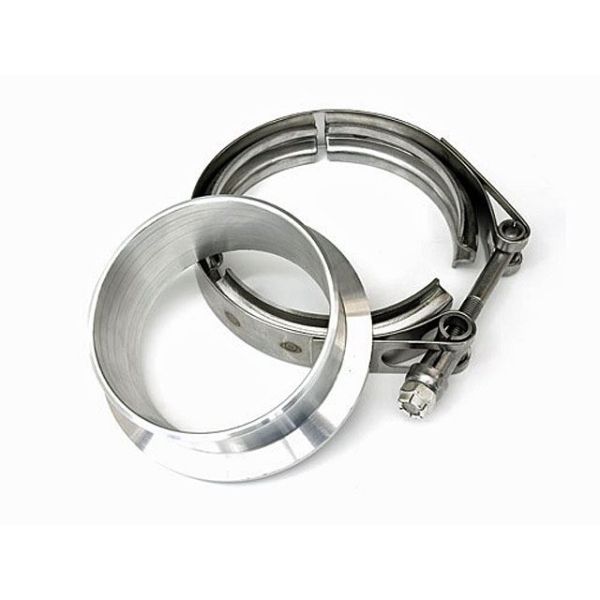

3.5" V-band flange (with o-ring seal) and clamp set.
Compatible with V-band outlet (3.5") compressor housings for Garrett GT42, GTX42, GT45, GTX45, GT47, GTX47, GTX50, GT55, GTX55 and GEN2 GTX55 series turbochargers. Weld a 3.5" diameter pipe directly to the v-band flange or slip on a 3.5" diameter hose.
PRODUCT FEATURES:
O-ring groove flange (o-ring included) to improve seal with the v-band compressor outlet flange
Protruded lip flange to secure slip-on hose connections with a T-Bolt clamp
Offers a smooth inner taper transition from the compressor housing outlet
Compatible with Garrett turbochargers with a 3.5" V-band flange (and 4.5" O.D.) compressor housing outlet
GARRETT TURBOCHARGERS (AVAILABLE WITH 3.5" V-BAND COMPRESSOR OUTLET):
GT4294R, GT4202R
GTX4294R, GTX4202R
GT4508R
GTX4594R, GTX4502R, GTX4508R
GT4708R, GT4718R
GTX4708R, GTX4718R
GTX5008R, GTX5018R
GT5518R, GT5533R, GT5541R
GTX5518R, GTX5533R
GEN2 GTX5533R
More Information
| Part Number | ATP-FLS-055 |
|---|---|
| Brand | ATP Turbo |
| Type of Part | Turbo VBands |
| Length | 6.0 |
| Width | 6.0 |
| Height | 6.0 |
| Weight | 5.000000 |
