Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
Sensor Body Material: Brass
Thread: 1/8" NPT
Hex Size: 1/2"
Installation Torque: 13.5Nm / 10 ft-lbs
Weight: 10g
Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals

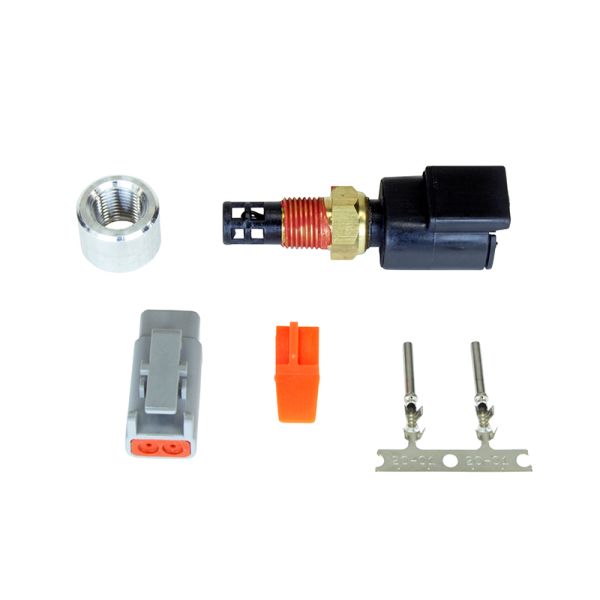

Includes: Air Temp Sensor High Performance DTM-Style, 1/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
30-2014: Air Temp Sensor with 1/8" NPT Male Thread, High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins
Weatherproof connector
Includes mating connector & pins
Senses the air temperature on the inlet side of the engine
More Information
Part Number
30-2014
Brand
AEM
Type of Part
Engine Management
Length
12
Width
12
Height
5
Weight
5.000000
Reviews
Write Your Own Review
Fitment
Details
AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.
Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
Sensor Body Material: Brass
Thread: 1/8" NPT
Hex Size: 1/2"
Installation Torque: 13.5Nm / 10 ft-lbs
Weight: 10g
Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals
Includes: Air Temp Sensor High Performance DTM-Style, 1/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
30-2014: Air Temp Sensor with 1/8" NPT Male Thread, High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins
Weatherproof connector
Includes mating connector & pins
Senses the air temperature on the inlet side of the engine
