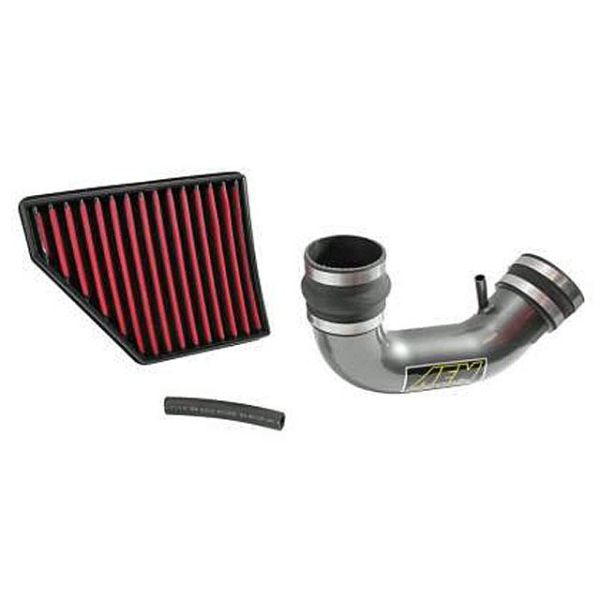

AEM Cold Air Intake
Details
AEM Cold Air Intake
An inexpensive and easy horsepower upgrade
Designed to improve throttle response and engine sound
Low restriction aluminum intake tube
Simplistic installation requires little mechanical experience
Lasts up to 100,000 miles before service is required (depending on driving conditions)
Replaces stock air filter and intake tube while retaining the factory air box
Washable and reusable lifetime air filter
AEM Lifetime Limited Warranty
The AEM 22-683C fits some Chevrolet Camaro models. See vehicle applications for details.
The AEM 22-683C Performance Air Intake System is a free-flowing, mandrel-bent aluminum tube air induction system designed to replace the restrictive factory air filter and air intake tubing while retaining the factory air box on some Chevrolet Camaro 3.6L V6 models. The air intake system comes with a replacement AEM high-flow air filter and a free-flowing aluminum intake tube that easily connects to your vehicle’s factory air box and engine throttle body to dramatically increase air flow into your engine. With more air flowing through the custom-tuned intake tube you experience more horsepower and acceleration throughout the engine’s RPM range. The intake tube is finished with an attractive and durable gunmetal gray powder-coat that provides a clean, high-performance look under the hood. The AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before servicing is needed (depending on driving conditions). The air intake is designed for easy installation and simply requires one screwdriver to do the job. The intake tube accommodates factory emissions control devices including the engine breather hose. This air intake system is street legal in all 50 US states.
Specifications AEM 22-683C Product Specifications
Estimated Horsepower Gain 8 HP @ 4700 RPM
Replacement Filter 28-20434
Air Filter Color Red
Air Filter Material Non-woven Synthetic
Air Filter Outlet Shape Not Flanged
Clamps Included 4
Clamp Material Stainless Steel
Clamp Style Regular
Couplers Included 2
Product Style AEM Cold Air Intake System
Air Filter Height 2.313 in (59 mm)
Intake Pipe Color / Finish Gunmetal Gray
Intake Pipe Material Aluminum
CARB EO Number D-670-20
Street Legal In All US States Yes
TUV Approved (Europe) No
Weight 6.3 lb (2.9 kg)
Product Box Height 8.5 in (216 mm)
Product Box Length 18.25 in (464 mm)
Product Box Width 14.5 in (368 mm)
Mounting Hardware Included Yes
Horsepower gains based on similar vehicle dynamometer test. Results will vary.
Applications:
2014 Chevrolet Camaro 3.6L V6 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-20 TUV Approved (Europe): No
2013 Chevrolet Camaro 3.6L V6 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-20 TUV Approved (Europe): No
2012 Chevrolet Camaro 3.6L V6 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-20 TUV Approved (Europe): No
2011 Chevrolet Camaro 3.6L V6 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-20 TUV Approved (Europe): No
2010 Chevrolet Camaro 3.6L V6 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-20 TUV Approved (Europe): No
More Information
| Part Number | 22-683C |
|---|---|
| Brand | AEM |
| Type of Part | Intakes |
| Engine Fitment | 3.6L |
| Length | 18 |
| Width | 15 |
| Height | 9 |
| Weight | 7.000000 |
