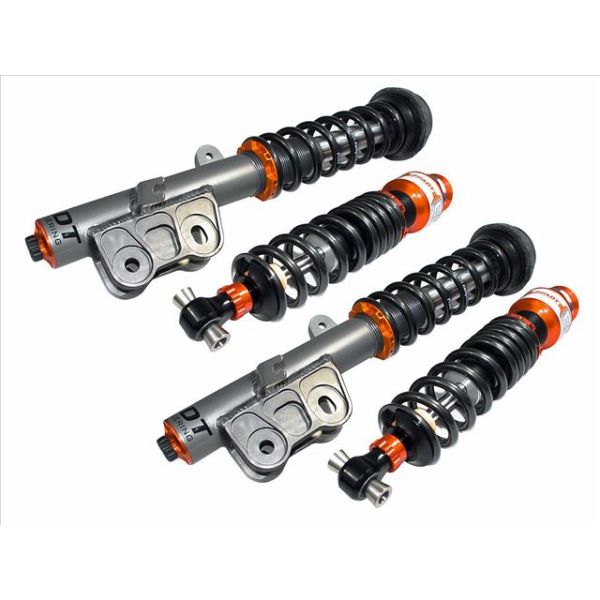

aFe Control PFADT Series Featherlight Single Adjustable Street/Track Coilover System
Details
Features:
• Featherlight coilovers are fully ride height adjustable
• Adjustable damping with 24 distinct settings on the front and rear
• Lightweight, Hard Anodized 6061-T6 Aluminum bodies, yield high strength, while still maintaining a lightweight design
• Mono-Tube construction utilizes an internal floating piston to separate oil and gas allowing for more predictable handling, and a consistent feel
• Rear BOA (Ball on Axis) upper mount system is a completely sealed mono-ball design that allows articulation required for the Camaro's suspension resulting in a better ride, and quiet operation
aFe Control is proud to release the PFADT Series Featherlight Adjustable Street/Track Coilover System for the 2010-2015 Camaro, including ZL1 and Z/28. Both ride height and damping are easily adjustable in this design, allowing for fine tuning the Camaro's stance and ride quality. Packed with features, the coilovers are precision CNC machined from 6061-T6 aluminum hard anodized and assembled in our Corona California production facility. The mono-tube construction utilizes a floating piston to separate the oil and nitrogen gas, allowing for predictable handling and a consistent feel. Since the coilovers employ double digressive valve technology, the easy touch, rotary knob will adjust both compression and rebound in one device. The 24 distinct settings on the front and rear shocks accommodate for a comfortable street feel, all the way up to track settings. Also available is a specially tuned version for Drag race set ups. Elevate your driving experience with the comfort, precision and excitement of aFe Control PFADT Series Featherlight Adjustable Coilovers.
Simple Ride Height Control:
Ride height is set through one easy to use spring perch, allowing up to 2” of drop.
Additional Tire Clearance:
The 6061-T6 CNC machined TIG welded front upright mounts allow additional tire clearance for aggressive wheel and tire combinations.
Adjustable Dampers:
24 distinct clicks of damping adjustment ensures that you will find a setting that is both comfortable on the street and still delivers amazing performance. The adjustment knob is placed conveniently at the bottom of the shock and effects both Rebound and Compression damping. Absolutely no drilling or adapters are required to reach the adjuster knobs in either the front or rear.
Camaro Specific Valving and Spring Rates:
While many companies are using "One Size fits all” shock valving, aFe Control's engineers thoroughly developed the coilovers on our in house, 1LE Camaro. The valving is designed to improve response and really make the car feel like it's glued to the road still giving you the ability to softly tune the car for fantastic street manners. The spring rates that are shipped with the coilovers are an excellent choice for both daily drivability and significantly improved handling.
BOA and CIRC System Included:
The BOA (Ball on Axis) upper mount allows a wide articulation range and low friction upper mount needed to keep the rear shocks functioning perfectly over the long term. The CIRC System (Concentric Integrated Remote Canister) substantially increases the gas volume within the shock for more consistent performance over a wide range of temperatures, offering the benefits of an external canister shock without the hassle of mounting the canister or added weight. Both the BOA and CIRC systems are quiet, durable and 100% maintenance free!
Significantly Lighter:
Featherlight Generation Coilovers feature lightweight 6061-T6 aircraft-grade aluminum housings. This design removes an amazing 10 lbs. of weight per front coilover compared to stock and an equally amazing 7 lbs. per shock in the rear. That's a total weight savings of 34 lbs.!
Inverted Shock Design:
The inverted mono-tube design is extremely stiff and is designed to carry high cornering loads without deflection and binding like traditional struts. By placing the majority of the weight on the sprung side of the chassis, control arms and outboard components will react quicker resulting in a suspension system that responds faster to changes in the road whether its highway, local roads, or track surfaces.
Stronger:
Because of the precision machining aircraft-grade aluminum construction and hard anodizing the front and rear coilover housings are significantly stronger than factory shocks. Both computer analysis and real world durability testing on the factory housings found that our new housings are significantly stiffer than the factory parts. This large increase in stiffness is just one more way that we improve suspension precision under hard cornering! No other coilover is stronger.
aFe Control Suspension products are engineered and manufactured in their Corona, California manufacturing facility.
More Information
| Part Number | 430-402001-N |
|---|---|
| Brand | aFe Power |
| Type of Part | Suspension |
| Engine Fitment | V6/V8 |
| Length | 28 |
| Width | 12 |
| Height | 11 |
| Weight | 40.000000 |
