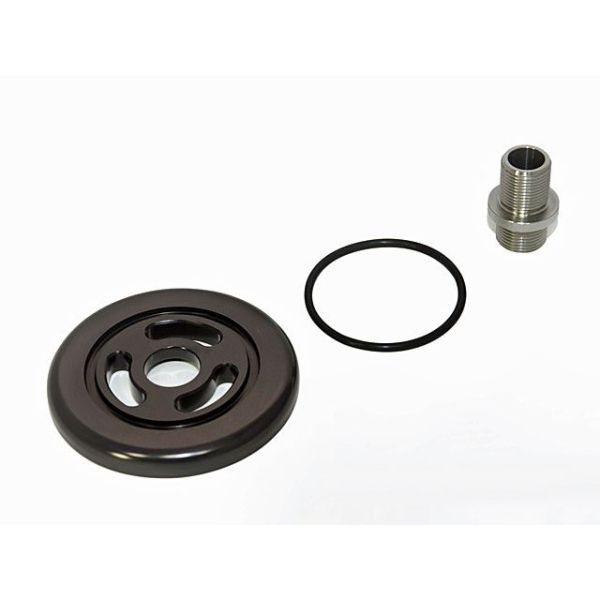

Alpha Performance Race Oil Filter Adapter Plate
Details
DESCRIPTION
Added Protection for Your High Horsepower GT-R Motor
In testing of the stock filter in high RPM GT-R engine they were experiencing collapsed oil filter media, ballooned oil filter casings, and no or little filtration due to the bypass valve being open to the increased pressure differential of the oil filter. This was simply unacceptable.
Increased Horsepower Demands Increased Protection
The AMS high RPM and high horsepower Alpha Performance engine builds use thicker 15w/50 motor oil, and are spinning at 2000 RPM over stock. This required a purpose designed filter for the increased flow and pressure seen in their Alpha applications. Introducing the Alpha Performance R35 GT-R Race Oil Filter Adapter. This adapter was designed for use in high horsepower racing and street applications. It allows for the use of a quality racing oil filter in the stock location to protect your GT-R’s engine even in the harshest conditions.
A Purpose Designed Filter
The filter chosen is designed for racing applications, perfect for high RPM, thicker oil viscosities, and more oil flow. The GT-R performance world can no longer use the factory oil filters for these applications. The oil filter adapter was designed to allow the use of a widely used filter size.
Have piece of mind knowing that your high horsepower GT-R has a race proven filter protecting your investment. Order the Alpha Performance R35 GT-R Race Oil Filter Adapter Kit Today!
Exclusive Benefits
Increased Engine Protection
Machined out of Aerospace Grade Aluminum
High Flow Race Oil Filter
Increased Oil Capacity
Oil Filter Notes:
Wix 51060R
Part Number: 51060R
UPC Number: 765809129269
Style: Spin-On Lube Filter
Service: Lube
Type: Full Flow
Media: Enhanced Cellulose
Height: 5.17(131)*
Outer Diameter Top: 3.6(91)*
Outer Diameter Bottom: Closed:
Thread Size: 13/16-16
By-Pass Valve Setting-PSI: None
Anti-Drain Back Valve: Yes
Max Flow Rate: 28 GPM
Nominal Micron Rating: 61
Gasket Diameters
Number O.D. I.D. Thk.
Attached 3.444 (87)* 3.100 (79)* 0.260 (7)*
Race car? Use this filter. This filter is designed for racing application where flow is important. These oil filters flow nearly 3x the amount of oil then the XP filters which has significant benefits for higher HP motors ensuring the engine is always lubricated.
High Efficiency Endurance (HEE) oil filters use a media rated at a Frazier airflow of approximately 75 CFM. This media contains a higher resin content than our Advanced Performance oil filters to trap and hold smaller contaminants and provide higher efficiency.
AMS High Efficiency Endurance filters also include the same component features as the Advanced Performance filters: high burst pressure can, high temperature rubber components, zinc chromate baseplate, metal end caps and spiral center tubes.
• Heavy-walled can and cover to withstand the extreme burst pressures (up to 500 psi).
• High temperature nitrile baseplate gaskets withstand extremely high racing temperatures (up to 300°F).
• Zinc chromate-plated baseplate provides low surface friction and is corrosion free.
• Spiral-wound center tube provides increased collapse pressure and enhanced flow pattern.
• Metal end caps provide element strength and prevent filtering bypass.
• Individually sealed to protect against contamination by environmental dust or dirt.
( )* denotes metric
Wix 57202XP
Part Number: 57202XP
UPC Number: 765809217034
Style: Spin-On Lube Filter
Service: Lube
Type: Full Flow
Media: Synthetic
Height: 5.216(132)*
Outer Diameter Top: 3.69(94)*
Outer Diameter Bottom: Closed:
Thread Size: 13/16-16
By-Pass Valve Setting-PSI: 15
Anti-Drain Back Valve: Yes
Max Flow Rate: 9-11 GPM
Gasket Diameters
Number O.D. I.D. Thk.
Attached 3.55 (90)* 3.16 (80)* 0.18 (5)*
WIX XP Oil Filters provide robust engine protection when using synthetic motor oil for harsh driving conditions such as towing, extreme idle time, lower gear mountainous climbs, long periods at highway speeds. WIX XP filters are recommended for OEM oil and filter change intervals, typically 3,750 to 10,000 miles. This filter traps up to 100% more dirt and contaminants than WIX to resist premature plugging due to oil breakdown. Fully synthetic media withstands the harsh oil temperatures and conditions. A specifically formulated HNBR gasket provides an excellent seal during extreme cold engine starts and resist hardening under elevated oil temperatures. When applicable, WIX XP silicone anti drain back valve protects against dry starts past the traditional filter change interval. Oil Filter Laboratory Test Performance per ISO 454812 32 grams dirt (51515XP), 99% efficient at 35 microns.
( )* denotes metric
Wix 57099XP (For Use with Alpha Cooling Kit)
Part Number: 57099XP
UPC Number: 765809217003
Style: Spin-On Lube Filter
Service: Lube
Type: Full Flow
Media: Synthetic
Height: 3.306(84)*
Outer Diameter Top: 3.66(93)*
Outer Diameter Bottom: Closed:
Thread Size: 13/16-16
By-Pass Valve Setting-PSI: None
Anti-Drain Back Valve: Yes
Max Flow Rate: 9-11 GPM
Gasket Diameters
Number O.D. I.D. Thk.
Attached 3.444 (87)* 3.1 (79)* 0.26 (7)*
WIX XP Oil Filters provide robust engine protection when using synthetic motor oil for harsh driving conditions such as towing, extreme idle time, lower gear mountainous climbs, long periods at highway speeds. WIX XP filters are recommended for OEM oil and filter change intervals, typically 3,750 to 10,000 miles. This filter traps up to 100% more dirt and contaminants than WIX to resist premature plugging due to oil breakdown. Fully synthetic media withstands the harsh oil temperatures and conditions. A specifically formulated HNBR gasket provides an excellent seal during extreme cold engine starts and resist hardening under elevated oil temperatures. When applicable, WIX XP silicone antidrain back valve protects against dry starts past the traditional filter change interval. Oil Filter Laboratory Test Performance per ISO 454812 32 grams dirt (51515XP), 99% efficient at 35 microns.
This filter has the same OD as the 51060R and the 57202XP, it is shorter to clear the race cooling kit front mounted transmission cooler.
( )* denotes metric
For Alternative Customer Supplied Filters
Required Specifications:
MAX OD case size – 3.700″
MAX seal OD – 3.550″
MIN seal ID – 2.200″
Height restriction depend on vehicle modifications and should be checked.
MAX height with Alpha Dual Pass Radiator 5.200″ NOTE: Slight trimming of the radiator hose to bring it closer to the radiator and core support may be required.
MAX height with Alpha Cooling Kit 3.300″
Vehicle clearance will be needed to be checked if using a filter taller then 5.500″ It may be possible to use a filter up to 8.000″ long such as the WIX 51794R.
More Information
| Part Number | ALP.07.04.0028-1 |
|---|---|
| Brand | AMS Performance |
| Type of Part | Engine |
| Engine Fitment | 3.8TT / VR38DETT |
| Length | 5.0 |
| Width | 8.0 |
| Height | 8.0 |
| Weight | 5.000000 |
