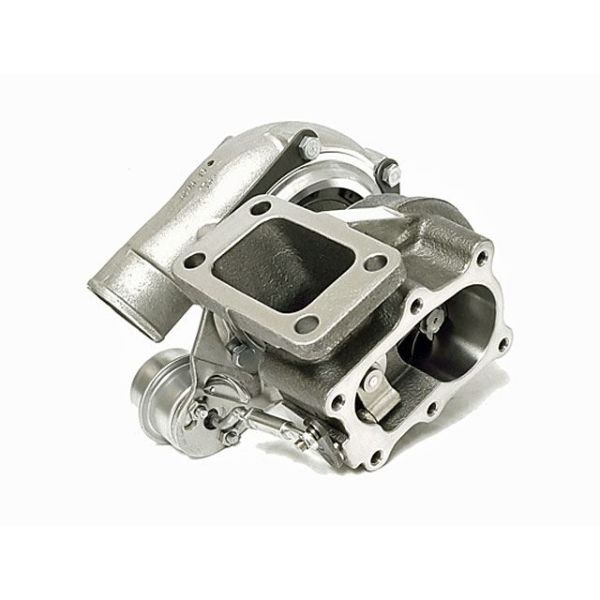

ATP Garrett GT3071R Drop-In Turbo Upgrade - RB25DET for 1998-2002 Nissan Skyline R32, R33, R34 - 836028-5005S
Product Description:
Garrett GT3071R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 bar internal wastegate actuator. 480+HP potential flow.
Product Features:
Genuine Garrett GT Aero compressor wheel
Genuine Garrett GT Inconel turbine wheel
Dual ball bearing CHRA rotating assembly
Product Specifications:
Compressor Wheel Inducer: 53mm
Compressor Wheel Exducer: 71mm
Compressor Wheel Trim: 56
Compressor Housing A/R: 0.50
Turbine Wheel Inducer: 60mm
Turbine Wheel Exducer: 55mm
Turbine Wheel Trim: 84
Turbine Housing A/R: 0.72
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
Oil drain flange: Product Code: ATP-FLA-010
Oil drain gasket: Product Code: GRT-GSK-008
Flange, T3 Inlet (Stainless Steel): Product Code: ATP-FLS-038 (ATP-FLS-001 -mild steel)
Gasket, T3 Turbine Inlet - UNDIVIDED: Product Code: GRT-GSK-005
NOTE:
*Alternate coolant and oil fittings and flanges, sold separately, are needed to connect the GT/GTX turbo.
**Depending on exhaust set up and turbo outlet eblow combination and boost levels desired, you may have to open up the IWG port on the turbine housing or add an EWG for proper boost control.
More Information
| Part Number | GRT-TBO-J25, 836028-5005S |
|---|---|
| Brand | Garrett |
| Type of Part | Turbo Upgrades |
| Engine Fitment | RB25DET |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 25.000000 |
