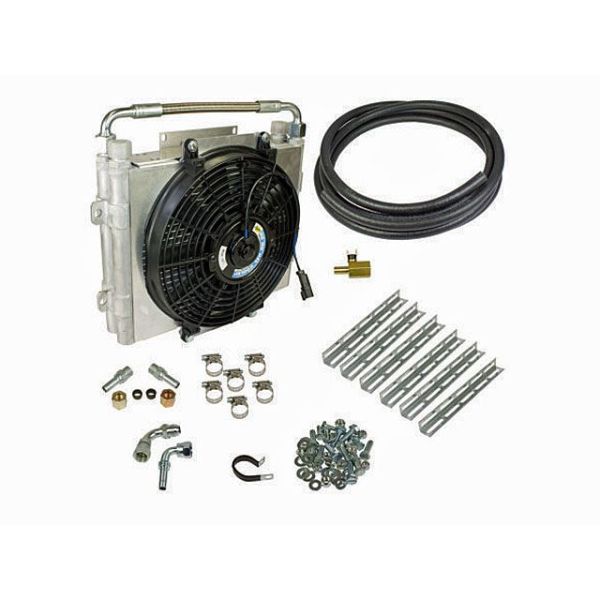

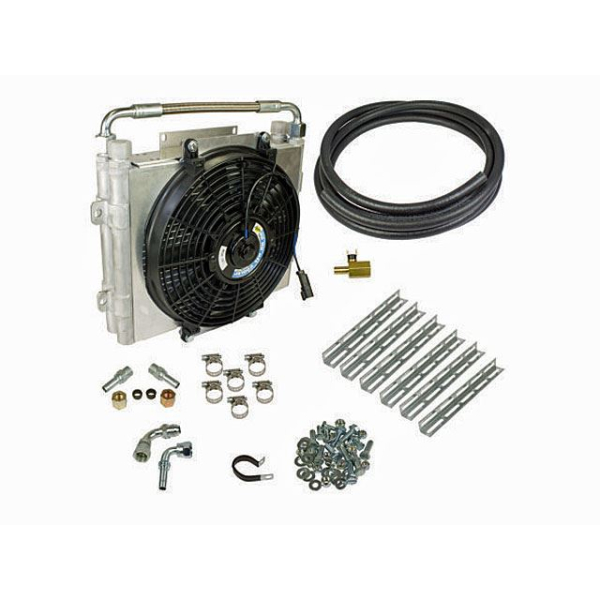

BD Diesel Xtrude Double Stacked Transmission Cooler Kit
Details
Large surface area to transfer heat for external air flow cooling
Turbulent oil flow design promotes a more complete cooling
Large 5/8-inch ports prevents inlet/outlet restriction
Furnace brazed rails have been tested to 300psi of pressure
Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
Kits complete with all fittings, clamps, hoses and hardware
Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal
The pre-wired loomed harness with fuse and relay comes with plug-in connectors
Chevy Allison 1000 - 5/8-inch Cooler Lines
Double stacked cores deliver over 40,000 BTU/HR of cooling
Over 350% temperature drop versus the factory system
136% better temperature drop than XTRUDED single core kit
Warranty
Parts
12-Months
24,000 Miles
Note
Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
More Information
| Part Number | 1030606-DS-58 |
|---|---|
| Brand | BD Diesel |
| Type of Part | Cooling |
| Engine Fitment | Duramax 6.6L |
| Length | 11.0 |
| Width | 22.0 |
| Height | 16.0 |
| Weight | 27.000000 |
