BL-5757 T3 Turbocharger - 550HP
TAGS: BL-5757 T3 Turbocharger, T3/T4, T04E, 57mm, 550HP, Journal Bearing, Garrett 57-Trim Replacement
Price Match Guarantee
Found it for less but value our service?
Details

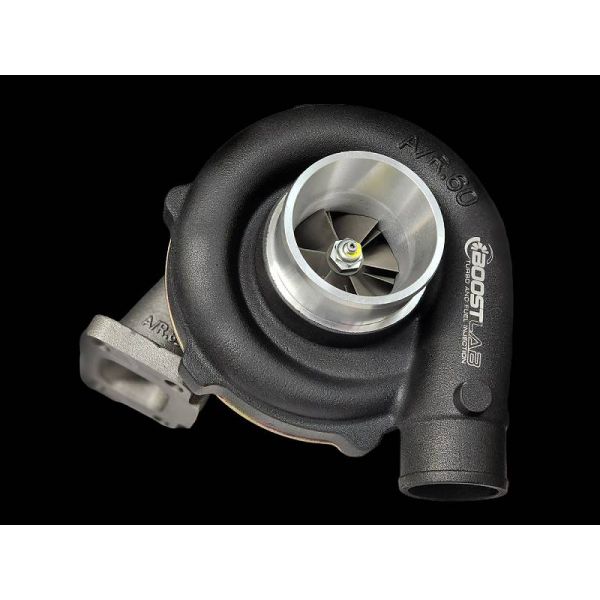

Boost Lab T3 5757 Cast Turbocharger
Assembled In-House | 1 Year Warranty
Rated @ 550HP
This turbo features a cast 57mm compressor wheel and 57mm turbine. .63 A/R T31 (2.5) 4-bolt discharge turbine housing. Standard T04E 2.5 Inlet / 2 Outlet compressor housing. The BL-5757 is assembled and VSR balanced in-house and comes with an industry standard 1 year unlimited mileage warranty. This unit is usually in stock and ships same day
Specs:
- Compressor Housing: 2.5 In / 2 Outlet
- Compressor Wheel: Cast 57mm inducer
- Turbine Housing: T3 .63 A/R T-31 (2.5) 4-Bolt Outlet
- Turbine Wheel: Inconel 57mm
- Bearing Type: Journal Bearing w/ Upgraded 360* Thrust
- Bolt Specs: Oil Feed - 1/8" NPT , Oil Return - M8x1.25
More Information
| Part Number | BL-5001 |
|---|---|
| Brand | Boost Lab |
| Type of Part | BL Series Turbos |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 25.000000 |
Reviews
Fitment
Boost Lab T3 5757 Cast Turbocharger
Assembled In-House | 1 Year Warranty
Rated @ 550HP
This turbo features a cast 57mm compressor wheel and 57mm turbine. .63 A/R T31 (2.5) 4-bolt discharge turbine housing. Standard T04E 2.5 Inlet / 2 Outlet compressor housing. The BL-5757 is assembled and VSR balanced in-house and comes with an industry standard 1 year unlimited mileage warranty. This unit is usually in stock and ships same day
Specs:
- Compressor Housing: 2.5 In / 2 Outlet
- Compressor Wheel: Cast 57mm inducer
- Turbine Housing: T3 .63 A/R T-31 (2.5) 4-Bolt Outlet
- Turbine Wheel: Inconel 57mm
- Bearing Type: Journal Bearing w/ Upgraded 360* Thrust
- Bolt Specs: Oil Feed - 1/8" NPT , Oil Return - M8x1.25
