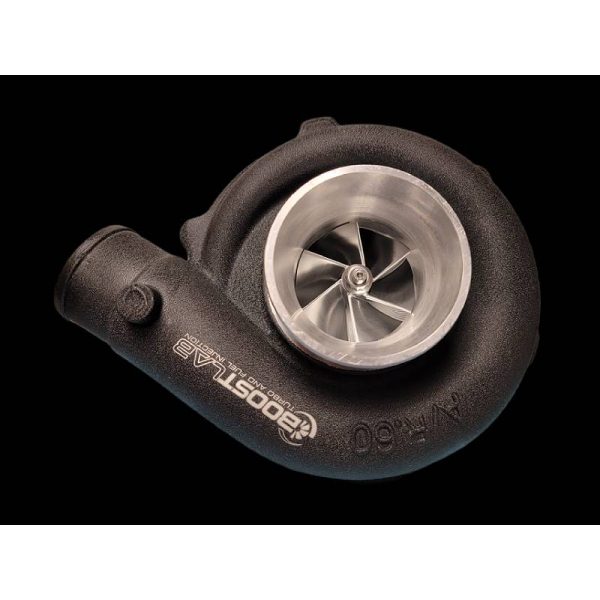

BL-5858 T3 Billet Wheel Turbocharger - 630HP
TAGS: BL-5858 T3 Billet Wheel Turbocharger, T3/T4, T04E, 58mm, 630HP, Journal Bearing, PTE 5831 MFS Replacement
Price Match Guarantee
Found it for less but value our service?
Details
BL-5858 T3 Billet Wheel Turbocharger - 630HP
Assembled In-House | 1 Year Warranty
Rated @ 630HP
This turbo features a high flow Billet 58mm compressor wheel and 58mm turbine. .63 A/R T31 (2.5) 4-bolt discharge turbine housing. T04E 3 Inlet / 2 Outlet compressor housing. The BL-5858 is assembled and VSR balanced in-house and comes with an industry standard 1 year unlimited mileage warranty. This unit is usually in stock and ships same day
Specs:
- Compressor Housing: 3 In / 2 Outlet
- Compressor Wheel: 58mm Extreme Contour Billet 6-Blade w/ Extended Exducer
- Turbine Housing: T3 .63 A/R T-31 (2.5) 4-Bolt Outlet
- Turbine Wheel: High flow 58mm Inconel Turbine Wheel
- Bearing Type: Journal Bearing w/ Upgraded 360* Thrust
- Bolt Specs: Oil Feed - 1/8" NPT , Oil Return - M8x1.25
More Information
| Part Number | BL-5858 |
|---|---|
| Brand | Boost Lab |
| Type of Part | BL Series Turbos |
| Length | 12 |
| Width | 12 |
| Height | 12 |
| Weight | 25.000000 |
Reviews
Fitment
BL-5858 T3 Billet Wheel Turbocharger - 630HP
Assembled In-House | 1 Year Warranty
Rated @ 630HP
This turbo features a high flow Billet 58mm compressor wheel and 58mm turbine. .63 A/R T31 (2.5) 4-bolt discharge turbine housing. T04E 3 Inlet / 2 Outlet compressor housing. The BL-5858 is assembled and VSR balanced in-house and comes with an industry standard 1 year unlimited mileage warranty. This unit is usually in stock and ships same day
Specs:
- Compressor Housing: 3 In / 2 Outlet
- Compressor Wheel: 58mm Extreme Contour Billet 6-Blade w/ Extended Exducer
- Turbine Housing: T3 .63 A/R T-31 (2.5) 4-Bolt Outlet
- Turbine Wheel: High flow 58mm Inconel Turbine Wheel
- Bearing Type: Journal Bearing w/ Upgraded 360* Thrust
- Bolt Specs: Oil Feed - 1/8" NPT , Oil Return - M8x1.25
