BL58X Dual Ball Bearing Billet Turbocharger - 750HP
TAGS: BoostLab BL58X Dual Ball Bearing Billet Turbocharger, T3/T4, T04E, 58mm, 750HP, Garrett GTX3076R GEN2 Replacement, Boost Lab
Price Match Guarantee
Found it for less but value our service?
Details

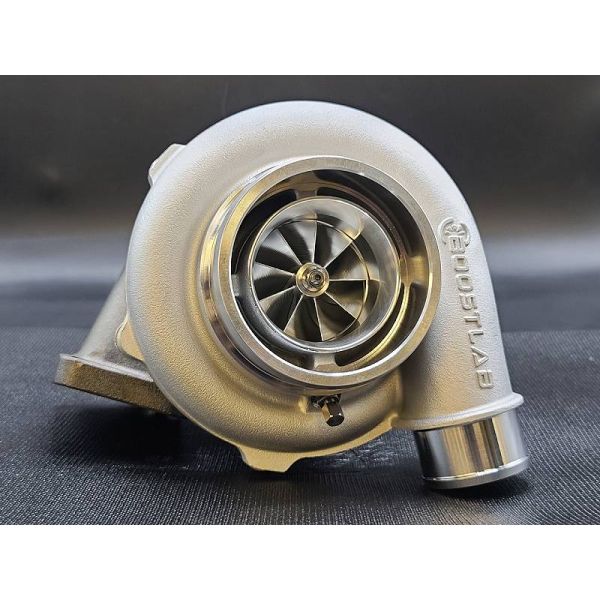

BoostLab BL58X Dual Ball Bearing Billet Turbocharger - 750HP
Assembled In-House | 1 Year Warranty
Rated @ 750HP
This turbo features a newly designed Point-Milled Billet 58mm compressor wheel and a performance 55mm Turbine Wheel. This unit comes standard with a ported 4" Inlet / 2" Outlet compressor housing. A Dual Ball Bearing oil and water cooled CHRA designed to handle high boost operation with ease, water cooling must be used with this turbocharger. The BL58X is fully assembled and VSR balanced in-house. All of our BL turbochargers come with an industry standard 1 year unlimited mileage warranty. This unit is in stock and ships same day.
Specs:
- Compressor Housing: Ported 4" Inlet / 2" Outlet
- Compressor Wheel: Point-Milled Billet 58mm
- Bearing Type: Oil & Water Cooled Dual Ball Bearing CHRA (water cooling must be used)
- Turbine Wheel: Inconel 55mm
- Oil Feed: 7/16-24"
- Warranty: 1 Year/Unlimited Mile
Turbine Housing Options
- T3 .63 A/R w/ 3" V-Band Outlet
- T3 .63 A/R w/ 3" 4-Bolt Outlet
- T3 .82 A/R w/ 3" V-Band Outlet
- T3 .82 A/R w/ 3" 4-Bolt Outlet
- V-Band In/Out .83 A/R
More Information
| Part Number | BL58X |
|---|---|
| Brand | Boost Lab |
| Type of Part | BL-X Series Turbos |
| Length | 12 |
| Width | 12 |
| Height | 12 |
| Weight | 25.000000 |
