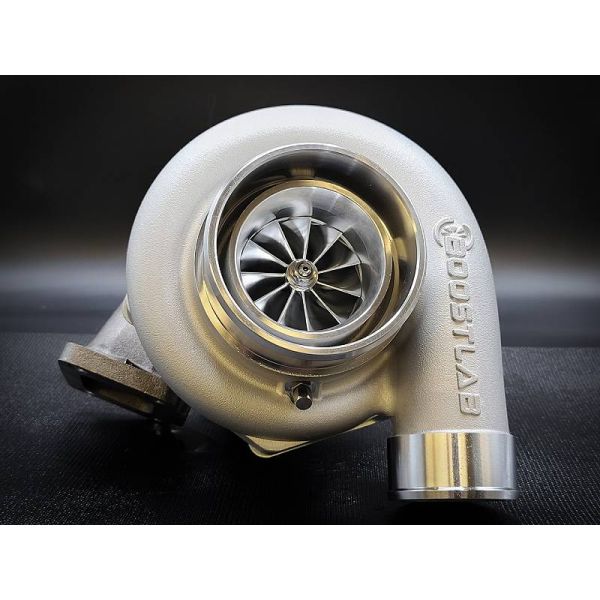

BL62X Dual Ball Bearing Billet Turbocharger - 750HP
TAGS: BoostLab BL62X Dual Ball Bearing Billet Turbocharger, T3/T4, T04S, T4, 62mm, 750HP, Garrett GTX3582R GEN1 Replacement, Boost Lab
Price Match Guarantee
Found it for less but value our service?
Details
BoostLab BL62X Dual Ball Bearing Billet Turbocharger - 750HP
Assembled In-House | 1 Year Warranty
Rated @ 750HP
This turbo features a Billet 62mm compressor wheel and a 62mm Turbine for quick spool. This unit comes standard with a ported 4" Inlet / 2.5" Outlet compressor housing. A Dual Ball Bearing oil and water cooled CHRA designed to handle high boost operation with ease, water cooling must be used with this turbocharger. The BL62X is fully assembled and VSR balanced in-house. All of our BL turbochargers come with an industry standard 1 year unlimited mileage warranty.
Specs:
- Compressor Housing: Ported 4" Inlet / 2.5" Outlet
- Compressor Wheel: Billet 11-Blade 62mm
- Bearing Type: Oil & Water Cooled Dual Ball Bearing CHRA (water cooling must be used)
- Turbine Wheel: Inconel 62mm
- Oil Feed: 7/16-24"
- Water Ports: M14 x 1.5
- Warranty: 1 Year/Unlimited Mile
Turbine Housing Options:
- T3 .63 A/R w/ 3" 4-Bolt Outlet
- T3 .82 A/R w/ 3" 4-Bolt Outlet
- T3 .63 A/R w/ 3" V-Band Outlet
- T3 .82 A/R w/ 3" V-Band Outlet
- T4 .82 A/R w/ 3" V-Band Outlet
- V-Band In/Out .83 A/R
- V-Band In/Out 1.01 A/R
More Information
| Part Number | BL62X |
|---|---|
| Brand | Boost Lab |
| Type of Part | BL-X Series Turbos |
| Length | 12 |
| Width | 12 |
| Height | 12 |
| Weight | 25.000000 |
Reviews
Fitment
BoostLab BL62X Dual Ball Bearing Billet Turbocharger - 750HP
Assembled In-House | 1 Year Warranty
Rated @ 750HP
This turbo features a Billet 62mm compressor wheel and a 62mm Turbine for quick spool. This unit comes standard with a ported 4" Inlet / 2.5" Outlet compressor housing. A Dual Ball Bearing oil and water cooled CHRA designed to handle high boost operation with ease, water cooling must be used with this turbocharger. The BL62X is fully assembled and VSR balanced in-house. All of our BL turbochargers come with an industry standard 1 year unlimited mileage warranty.
Specs:
- Compressor Housing: Ported 4" Inlet / 2.5" Outlet
- Compressor Wheel: Billet 11-Blade 62mm
- Bearing Type: Oil & Water Cooled Dual Ball Bearing CHRA (water cooling must be used)
- Turbine Wheel: Inconel 62mm
- Oil Feed: 7/16-24"
- Water Ports: M14 x 1.5
- Warranty: 1 Year/Unlimited Mile
Turbine Housing Options:
- T3 .63 A/R w/ 3" 4-Bolt Outlet
- T3 .82 A/R w/ 3" 4-Bolt Outlet
- T3 .63 A/R w/ 3" V-Band Outlet
- T3 .82 A/R w/ 3" V-Band Outlet
- T4 .82 A/R w/ 3" V-Band Outlet
- V-Band In/Out .83 A/R
- V-Band In/Out 1.01 A/R
