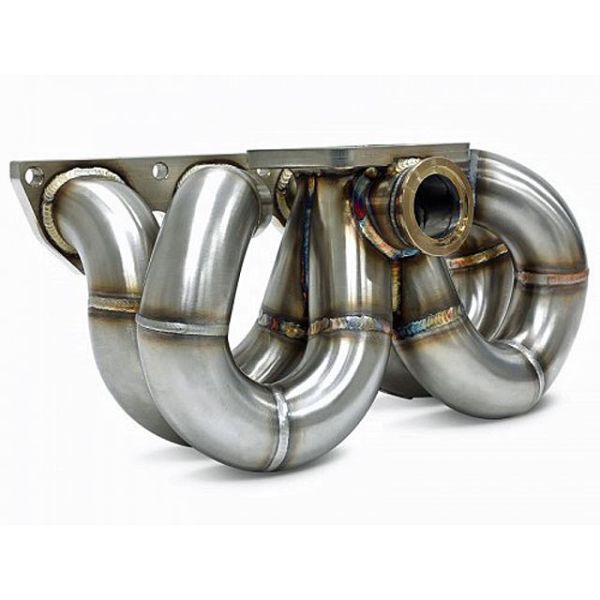

Blox Racing Ram Horn Turbo Exhaust Manifold
Found it for less but value our service?
Details
Description:
BLOX Racing’s Ram Horn is available for Honda B-series engines and features a unique dual-pattern turbo inlet flange. This industry-first will give the customer the choice of starting with a T3 turbo and later upgrading to a T4 without having to purchase a brand new manifold.
The manifold also features a V-band wastegate flange that will accommodate 38mm and 40mm wastegates from most popular brands.
Manifolds are constructed from Schedule 30 T304 stainless steel and TIG-welded. The 11mm thick flanges provide additional strength and rigidity. The ram horn design features equal length runners that create quicker spooling of larger turbos. The ram horn’s bottom mount design also provides a more compact fitment, compared to its Top Mount counterpart.
SPECIFICATIONS:
T304 stainless steel; Schedule 40
Mandrel-bent tubing; TIG-welded
T3 & T4 dual pattern open inlet flange
38mm/40mm wastegate V-band flange
11mm thick flanges
Equal length runners
Can accommodate up to T4 with S-cover
Cannot use factory A/C
Power steering bracket requires modification
APPLICATIONS:
1990-1993 Acura Integra GS L4.1834cc Exhaust, Mufflers & Tips::Headers & Manifolds
1997-2001 Acura Integra GS L4.1834cc Exhaust, Mufflers & Tips::Headers & Manifolds
1994-2001 Acura Integra GS-R L4.1797cc Exhaust, Mufflers & Tips::Headers & Manifolds
1990-2001 Acura Integra LS L4.1834cc Exhaust, Mufflers & Tips::Headers & Manifolds
1990-1998 Acura Integra RS L4.1834cc Exhaust, Mufflers & Tips::Headers & Manifolds
1995-1996 Acura Integra Special Edition L4.1834cc Exhaust, Mufflers & Tips::Headers & Manifolds
1997-1998 Acura Integra Type R L4.1797cc Exhaust, Mufflers & Tips::Headers & Manifolds
2000-2001 Acura Integra Type R L4.1797cc Exhaust, Mufflers & Tips::Headers & Manifolds
1999-2000 Honda Civic Si L4.1595cc Exhaust, Mufflers & Tips::Headers & Manifolds
1994-1995 Honda Civic del Sol VTEC L4.1590cc Exhaust, Mufflers & Tips::Headers & Manifolds
1996-1997 Honda Civic del Sol VTEC L4.1595cc Exhaust, Mufflers & Tips::Headers & Manifolds
1998-2001 Honda CR-V EX L4.1972cc Exhaust, Mufflers & Tips::Headers & Manifolds
1997-2001 Honda CR-V LX L4.1972cc Exhaust, Mufflers & Tips::Headers & Manifolds
2000-2001 Honda CR-V SE L4.1972cc Exhaust, Mufflers & Tips::Headers & Manifolds
More Information
Part Number | BXEX-10120 |
---|---|
Brand | Blox Racing |
Type of Part | Turbo Manifolds |
Engine Fitment | B-Series |
Length | 15 |
Width | 15 |
Height | 12 |
Weight | 20.000000 |
