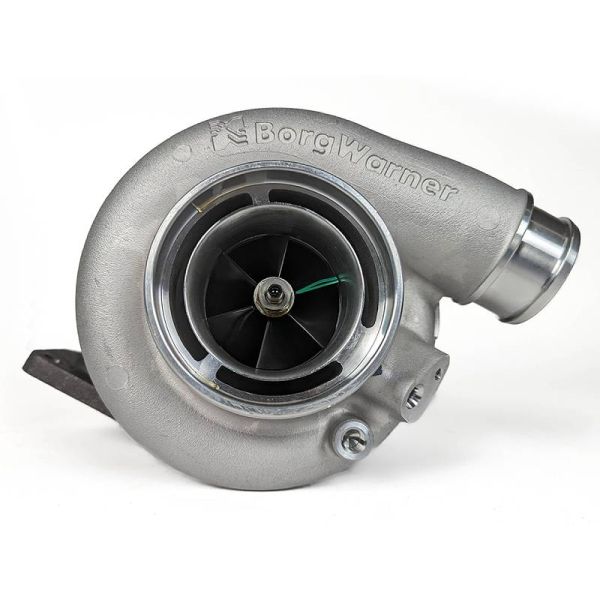

BorgWarner S258SX-R 58mm (7670) Turbo - 775HP
Details
BorgWarner AirWerks S200 SXR 7670 aka S258SX-R - 12707105086
BorgWarner's all-new S258SX-R turbocharger sets a new standard for efficiency, power, and reliability in a simple and cost-effective journal-bearing design. This turbocharger is based on the reliable S200 frame, and flows a remarkable 76lb/min! Featuring BW’s highly advanced 58mm billet compressor wheel, the SXR boasts state-of-the-art aerodynamics to seamlessly blend remarkable airflow rates with minimized inertia. The result? Earlier spool-up and lightning-fast response times, delivering an unparalleled driving experience.
Versatility is the name of the game with the S258SX-R. Whether you're dominating the racetrack, unleashing high performance on the streets, or seeking the perfect balance between the two, this turbocharger has you covered. With its ability to support a wide range of horsepower requirements, it stands as the ultimate choice for competitive racing, spirited street driving, and everything in between.
S258SX-R FEATURES & BENEFITS:
- Supports up to 775 HP
- Low rotor inertia (quicker spooling)
- Integrated speed sensor port
- Forged milled compressor wheel
- Flexible compressor cover outlet options
- Pre-machined boost port
- Optimized compressor stage aerodynamics
S258 SXR 7670 COMPRESSOR SPECIFICATIONS
Compressor Type: Forged-Milled Wheel (FMW)
Compressor Wheel OD (exducer): 76mm
Compressor Wheel Inducer: 58mm
Max Flow Rate: 76 lb/min
Max Turbo Speed: 580 m/s
Compressor Housing Connections: Inlet: 3.5″ Hose Coupler / Outlet: 2.0″ Hose Coupler
7670 S258 58MM SXR TURBINE SPECIFICATIONS
Turbine Wheel Exducer: 61.43mm
Turbine Wheel Inducer: 70mm
Housing Size and A/R ratio: S258SX-R 7670 is available in six (6) different turbine housing configurations:
0.83 A/R Divided T4 Twin Scroll Inlet
1.00 A/R Divided T4 Twin Scroll Inlet
1.09 A/R Divided T4 Twin Scroll Inlet
1.15 A/R Divided T4 Twin Scroll Inlet
1.22 A/R Divided T4 Twin Scroll Inlet
1.27 A/R Divided T4 Twin Scroll Inlet
More Information
| Part Number | 12707105086 |
|---|---|
| Brand | BorgWarner |
| Type of Part | SX-R Series |
| Length | 15.0 |
| Width | 15.0 |
| Height | 15.0 |
| Weight | 25.000000 |
