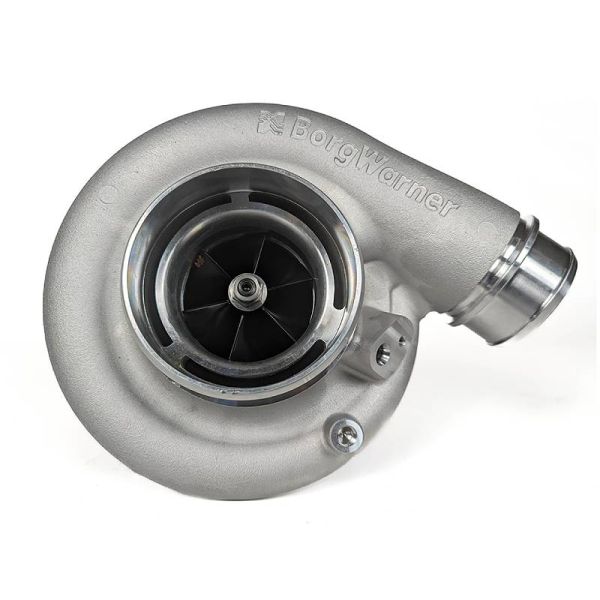

BorgWarner S364SX-R 64mm (8476) Turbo - 950HP
Price Match Guarantee
Found it for less but value our service?
Details
BorgWarner AirWerks S300 SXR 8476 aka S364SX-R - 13767105022
Introducing BorgWarner's groundbreaking 64mm S364SX-R (8476) turbocharger, a game-changer in the realm of reliability, power, and value. Packaged within the trusted S300 frame size, the S364SX-R features a 64mm billet compressor that flows a whopping 91lb/min through cutting-edge aerodynamics. The S364SX-R boasts state-of-the-art technology that seamlessly integrates increased airflow with minimized inertia. The result? Quicker spool-up times and lightning-fast response rates that redefine performance expectations.
Versatility is at the core of the S364SX-R. Whether you're pushing the limits on the track, unleashing power on the streets, or seeking the perfect balance of both worlds, this turbocharger delivers. Its ability to accommodate a wide spectrum of horsepower and airflow requirements makes it the ultimate choice for competitive racing and high-performance street applications up to 950 HP.
S364SX-R FEATURES & BENEFITS:
- Supports up to 950 HP
- Low rotor inertia (quicker spooling)
- 360-degree thrust bearing
- Integrated speed sensor port
- Forged milled compressor wheel
- Flexible compressor cover outlet options
- Pre-machined boost port
- Optimized compressor stage aerodynamics
S364 SXR 8476 COMPRESSOR SPECIFICATIONS
Compressor Type: Forged-Milled Wheel (FMW)
Compressor Wheel OD (exducer): 84mm
Compressor Wheel Inducer: 64mm
Max Flow Rate: 91 lb/min
Max Turbo Speed: 580 m/s
Compressor Housing Connections: Inlet: 4.0″ Hose Coupler / Outlet: 2.5″ Hose Coupler
8476 S364 76MM SXR TURBINE SPECIFICATIONS
Turbine Wheel Exducer: 67.56mm
Turbine Wheel Inducer: 76.20mm
Housing Size and A/R ratio: S364SX-R 8476 is available in six (4) different turbine housing configurations:
0.88 A/R T4 Single Scroll
0.91 A/R Divided T4 Twin Scroll Inlet
1.00 A/R Divided T4 Twin Scroll Inlet
1.10 A/R Divided T4 Twin Scroll Inlet
More Information
| Part Number | 13767105022 |
|---|---|
| Brand | BorgWarner |
| Type of Part | SX-R Series |
| Length | 15.0 |
| Width | 15.0 |
| Height | 15.0 |
| Weight | 35.000000 |
