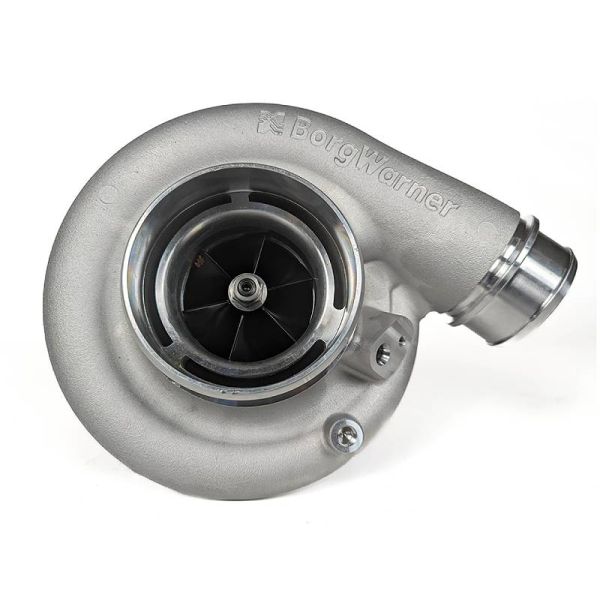

BorgWarner S368SX-R 68mm (8876) Turbo - 1000HP
The BorgWarner Airwerks S368SX-R turbocharger with 76mm turbine (PN: 13767105020) is a high-performance solution designed for serious enthusiasts seeking to maximize reliability, efficiency and power output from your engine. This 76mm turbine variant is BW’s fastest spooling 100+ lb/min journal-bearing turbocharger.
Details
BorgWarner AirWerks S300 SXR 8876 aka S368SX-R - 13767105020
The BorgWarner Airwerks 68mm S368SX-R (8876) turbocharger is purpose-built for high-output applications (up to 1000HP) with early spool. Whether you're considering single or twin turbo installations, competitive drag racing, or high-performance street builds pushing up to 1000 HP, the SX-R sets a new standard for efficiency, reliability, and power output within the realm of cost-effective journal-bearing turbochargers.
This turbocharger is engineered to excel with its Forged-Milled Wheel (FMW) compressor design and advanced aerodynamics. Its ability to maintain peak efficiency while spooling early and supporting a wide range of horsepower requirements makes it an optimal choice.
With the BorgWarner Airwerks 68mm S368SX-R turbocharger, you can trust in its capability to deliver consistent, reliable performance, allowing you to push the boundaries of power output without compromising on efficiency or reliability.
S368SX-R FEATURES & BENEFITS:
- Supports up to 1000 HP
- Low rotor inertia (quicker spooling)
- 360-degree thrust bearing
- Integrated speed sensor port
- Forged milled compressor wheel
- Flexible compressor cover outlet options
- Pre-machined boost port
- Optimized compressor stage aerodynamics
S368 SXR 8876 COMPRESSOR SPECIFICATIONS
Compressor Type: Forged-Milled Wheel (FMW)
Compressor Wheel OD (exducer): 88mm
Compressor Wheel Inducer: 68mm
Max Flow Rate: 103 lb/min
Max Turbo Speed: 580 m/s
Compressor Housing Connections: Inlet: 4.0″ Hose Coupler / Outlet: 2.5″ Hose Coupler
8876 S368 76MM SXR TURBINE SPECIFICATIONS
Turbine Wheel Exducer: 67.56mm
Turbine Wheel Inducer: 76.20mm
Housing Size and A/R ratio: S368SX-R 8876 is available in six (4) different turbine housing configurations:
0.88 A/R T4 Single Scroll
0.91 A/R Divided T4 Twin Scroll Inlet
1.00 A/R Divided T4 Twin Scroll Inlet
1.10 A/R Divided T4 Twin Scroll Inlet
More Information
| Part Number | 13767105020 |
|---|---|
| Brand | BorgWarner |
| Type of Part | SX-R Series |
| Length | 15.0 |
| Width | 15.0 |
| Height | 15.0 |
| Weight | 35.000000 |
