Comp CTR3081E-5858 Oil-Less Water Cooled Triplex BBB Turbo - 650HP
TAGS: Comp CTR3081E-5858 Oil-Less Water Cooled Triple Ball Bearing Turbo - 650HP, 1.4L - 3.0L, No Oil Lines, Triplex BBB System, 3081002-E, 3081631, 3081821, 3081161, 3081632, 3081822, 3081162, 3081823, 3081163
Details

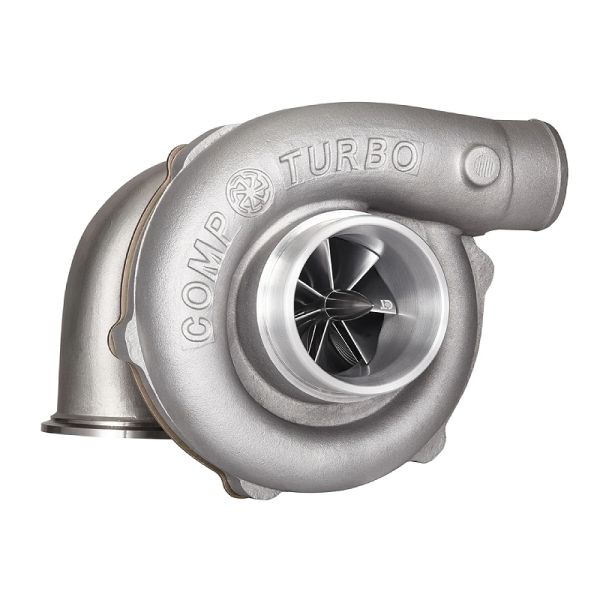

Comp CTR3081E-5858 Oil-Less Water Cooled Triplex Triple Ceramic Ball Bearing Turbo - 650HP
Comp CTR3081E-5858 Turbo Features:
• NOW with a 24 Month Warranty
• Titanium Bullet Nose
• 99% Mechanical Efficiency
• Fully Rebuildable/Upgradeable
• No Oil Lines Required
• Anti-Surge Compressor Housing
• Billet Aluminum Bearing Housing
• Can Be Mounted In Any Orientation
• Inconel 713C 10 Bladed Turbine Wheel
• Patented TRIPLEX CERAMIC™ Ball Bearing System
• NEW 7/14 Vane Billet Slim Hub Extended Tip Compressor Wheel
Comp CTR3081E Compressor Wheel SPECs:
Inducer: 58mm / Exducer: 81mm
Comp CTR3081E Turbine Wheel SPECs:
Inducer: 58mm / Exducer: 65mm
Comp CTR3081E Compressor Housing SPECs:
T04E - Inlet: 3" / Outlet: 2" / A/R: .60
Comp CTR3081E Turbine Housing Options:
(3081631) .63 A/R T3 Inlet 4 Bolt Discharge
(3081821) .82 A/R T3 Inlet 4 Bolt Discharge
(3081161) 1.06 A/R T3 Inlet 4 Bolt Discharge
(3081632) .63 A/R T3 Inlet 3" V-Band Discharge
(3081822) .82 A/R T3 Inlet 3" V-Band Discharge
(3081162) 1.06 A/R T3 Inlet 3" V-Band Discharge
(3081823) .82 A/R Stainless Steel V-Band Inlet & Outlet
(3081163) 1.06 A/R Stainless Steel V-Band Inlet & Outlet
Apllicable Part Numbers: 3081002-E, 3081631, 3081821, 3081161, 3081632, 3081822, 3081162, 3081823, 3081163
Lubrication is essential for turbochargers which rotate at extremely high speeds. The use of engine oil to lubricate turbocharger bearing systems has long been the standard, but not without its limitations and inconveniences. Oil lubricated systems offer limited mounting options where oil must be gravity fed back into the engine unless incorporating expensive and complicated scavenging systems. Oil lubricated systems are also susceptible to contaminants from engine wear and are susceptible to leaking and smoking. These factors served as motivation to remove the use of engine oil from turbocharger bearing systems, thereby eliminating the problems associated. Comp Turbo's innovative design and technology led to the development and introduction of the world's first production oil-less water-cooled turbocharger!
The patented CTR Oil-Less Turbochargers employ a version of the Triplex Ceramic triple ball bearing system where bearings are lubricated by a proprietary high-quality non-channeling grease. The bearing housing incorporates a water jacket for cooling, and a Zerk fitting for easy servicing. Comp Turbo ball bearing turbochargers feature a patented triple ball bearing design boasting a 99% mechanical efficiency! Resulting in a faster transient response over the industry standard dual ball bearing system due to minimized friction losses. Dramatically improving response times and maximizing power output! Our patented Triplex Ceramic bearing system is housed within a billet aluminum cartridge making our turbochargers an average of 5 to 12 pounds lighter than others! Our complete line of turbochargers is proudly made in the USA and feature our latest R-Line technology! Consisting of the CTR 7/14 veined billet slim hub extended tip compressor wheel and high efficiency CTR slim hub high flow turbine wheel, our most advanced rotor technology yet!
More Information
| Part Number | 3081002-E, 3081631, 3081821, 3081161, 3081632, 3081822, 3081162, 3081823, 3081163 |
|---|---|
| Brand | Comp Turbo |
| Type of Part | Turbo Chargers |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 25.000000 |
