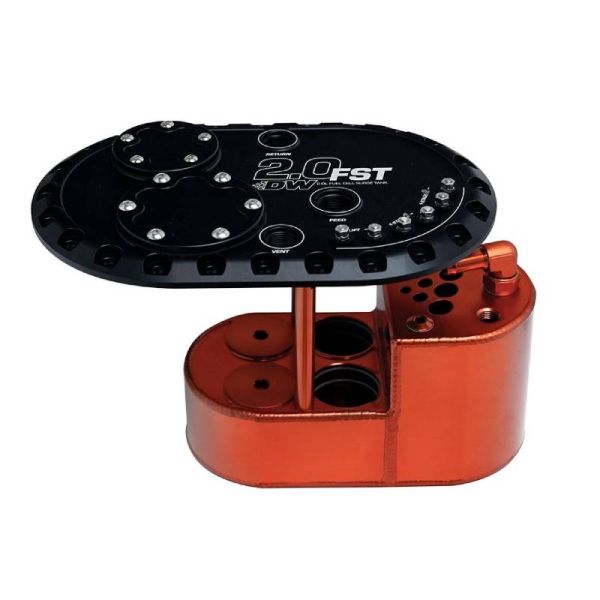

Deatschwerks 2.0L Staged 4 Pump Fuel Cell Surge Tank - 6-000-20FST
2.0 liter surge tank volume fits standard 6" x 10" 24 bolt fuel cells, designed to fit 1, 2, or 3 pressre pumps. Desined for 39mm or 46mm pumps, optional straight or angled fill necks, four -6AN ORB for up to four lift pumps supports up to 2500BHP
Each 2.0 FST Incudes
6x100 24 bolt mounting plate assembly with gasket and bolts
2.0 surge Tank Assembly with 5" support rods and hardware
8AN to 1/2" hose barb return fittings with hoses and clamps
6AN ORB to 3/8" hose barb feed fitting, with hoses and Clamps
6An ORB Plugs for lift ports x3
46mmto39mm fuel pump adaptor sleeves x4
surge tank fuel pump block off plugs x2
m5 pump wiring studs x6 with ring terminals x14
Fill neck and level sensor delete plates with gaskets and bolts
More Information
Part Number | 6-000-20FST |
---|---|
Brand | DeatschWerks |
Type of Part | Fuel Components |
Length | 15 |
Width | 10 |
Height | 10 |
Weight | 6.000000 |
