ETS 5 Inch Intercooler Upgrade Kit (N54/N55)
Details
The ETS intercooler Kit Features
Full Intercooler Kit- Includes Intercooler, Charge Pipe, Couplers,Clamps
Direct Bolt on with absolutely no cutting
Replaces Restrictive Stock Piping
Max HP Gains of 21.05hp
Over 60deg Lower Temps
No Heat Soak after a Pull
Reduces Knock
Durable Stainless Steel Piping
4 Ply Silicone Couplers
Breeze Premium T-Bolt Clamps
Works On Both N54 (Twin Turbo) or N55 (Single Turbo)
7" Requires trimming of bumper cover
ETS Test results are on their 5" Front Mount Intercooler

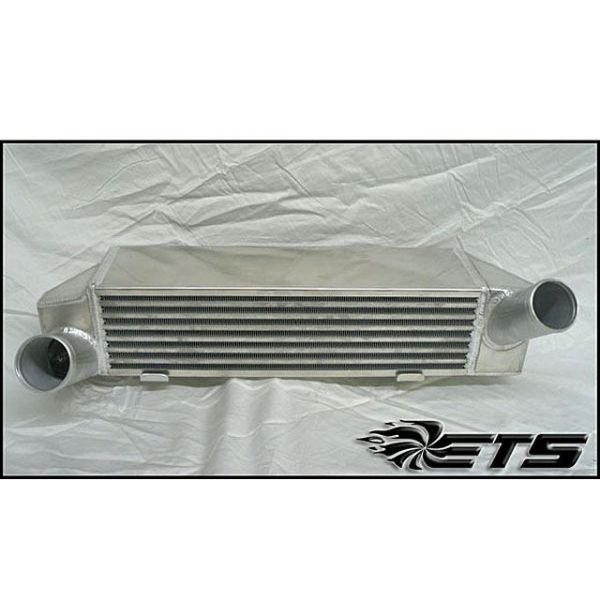

Note how the inlet and outlets are staggered. The inlet is at the top of the cooler and the outlet is at the bottom. This design will force the air to flow through the whole cooler, not just straight across as if both inlet and outlets were on the top. Also note the radiator shroud tabs at the bottom of the cooler.
Stock system has an accordion hose at the inlet. This hose will create turbulence because of the ribbed design.
ETS Solution- Extend the inlet tube to reach the stock turbo outlet pipe and use a straight, smooth silicone coupler.
90deg bend at the intercooler outlet is restrictive to flow.
ETS Solution- Split the sharp 90deg bend up into a 60deg and a 30deg bend. This still makes a 90deg turn, but is not as sharp as the stock 90deg hose. This allows for better airflow post intercooler.
Plastic Pipe has restrictive dimples protruding into the airstream.
ETS Solution- Use a Stainless Steel mandrel bent pipe that is uniform inner diameter throughout it's length improves flow as well.
Analysis of Stock Intercooler:
Base Test on a stage 1 vehicle at 12psi shows good power, but a flat spot in the mid range power between 5000-5700rpm is likely due to the rapidly rising outlet temps of the inefficient stock intercooler. Based upon the 100deg mid pull temps, and the 125deg end of pull temp, there is definitely room for improvement over the stock intercooler.
Analysis of ETS Intercooler:
Upon installation of the ETS Intercooler Kit, the car shows a 21.05hp increase and makes 361 peak hp. Outlet temps are only 59deg at mid pull and the temps only rise to 66deg at the end of the run. These temps are signifigantly lower than stock, and it is no surprise that there is a substancial power increase with the intercooler kit installed.
Aside from the midrange, they also noticed a slight Increase in top end power as well. This can be attributed in part to the ETS Replacement Charge Pipe which replaces the plastic stock pipe with the 2 restrictve dimples that protrude into the flow area of the pipe.
Through Gears Test:
As our test car was an automatic, it was a perfect candidate for a pull through all 4 gears.This is the test that really shows the difference in the ETS Kit vs. the stock intercooler as this test will put a lot of heat into the system in 1st and 2nd gears, which should show the stock units shortcomings as it gets to the high load areas of 3rd and 4th gear.
In this test they see both intercoolers start out at 50deg, by the top of second gear the ETS intercooler is only up to 57deg, while the stock unit is already at 78deg. By the time we get to the top of third gear, the stock cooler has heat soaked, and the charge temps are up to 124, which is way too hot to safely control knock. While the stock intercooler is struggling in 3rd gear, the ETS intercooler is handling the temps with ease, yielding a 69deg charge air temperature.
As the car shifts into 4th, the stock intercooler continues to struggle to control the charge air temps, and fails miserably, ending up at 158deg, and even causing timing to be pulled enough that we see two noticeable dips in power.
The ETS intercooler on the other hand, is handling the load of 4th gear without issue, and is returning good power throughout the rest of the pull. Charge temps rise to only 91deg, and we see a max power difference of 25hp. This is a considerable improvement over the stock unit, and is a difference you can really feel in the drivers seat.
30sec. After Pull Analasys:
The above graph illustrates the how well the ETS intercooler deals with heat even after the pull. As illustrated, the ETS intercooler just never gets hot, and even 30seconds after a run through all the gears, the ETS unit is only 69deg while the stock cooler is still over 110deg. These low after pull temps are important because it means that with the ETS intercooler System you ready to make another pull, while the stock cooler is best left to cool down for at least a few minutes.
Stage 1 Race Gas:
After all of the design testing was completed, we ran the car on unleaded MS109 racegas and turned up the torque table settings. The outcome was 393whp and 414tq. Not bad for a stage 1 automatic car, with just intake, intercooler, and a tune
More Information
| Part Number | 600-10-ICK-001, 600-10-ICK-013 |
|---|---|
| Brand | Extreme Turbo Systems (ETS) |
| Type of Part | Intercoolers |
| Engine Fitment | N54, N55 |
| Length | 12.0 |
| Width | 30.0 |
| Height | 12.0 |
| Weight | 30.000000 |
