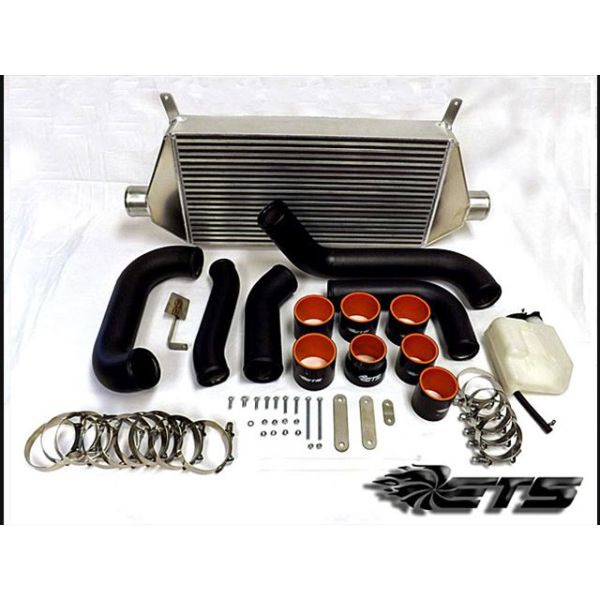

ETS Intercooler Upgrade Kit
Details
The ETS 93-98 Supra Intercooler Kit is a direct bolt on kit and includes blow off valve piping for twin turbo or a big single turbo setup with your choice of blow off valve option, piping color and with core sizes ranging from 4.0" thick up to 6.0" we have everything from 400hp to 1600hp!
*Wrinkle Black Piping Standard*
Features:
•30x12x4" Overall Dimensions (tank to tank)
•24x12x4" Bar & Plate Core.
•3.0" inlet and outlet.
•4" Thick - 1272CFM at 81% efficiency rating. (850hp)
•5" Thick - 1596CFM at 83% efficiency rating. (1100hp)
•6" Thick - 2100CFM at 84% efficiency rating. (1500hp)
•Pressure Checked at 35psi.
•Bolt on design retains crash beam.
•Fills Entire Grill.
•Full mandrel bend 3" Piping
•Stainless Steel T-Bolt Clamps
•4-Ply silicone couplers.
•Silver or Black powder coat finish.
•Includes coolant overflow tank.
•Includes new AC, Power Steering Cooler, and Lower Intercooler Bracket.
•Includes all hardware needed for install.
*Note: Polished option takes 1 - 2 weeks to complete and comes in an award winning show room polish
*Note: Big Single option is designed for ETS Big Single Turbo Kits and have an extended elbow welded to the compressor cover. An aluminum tube must be welded to the compressor cover to accommodate a big single turbo option
More Information
| Part Number | ETS_MK4_IC_KIT |
|---|---|
| Brand | Extreme Turbo Systems (ETS) |
| Type of Part | Intercoolers |
| Length | 40 |
| Width | 20 |
| Height | 20 |
| Weight | 50.000000 |
