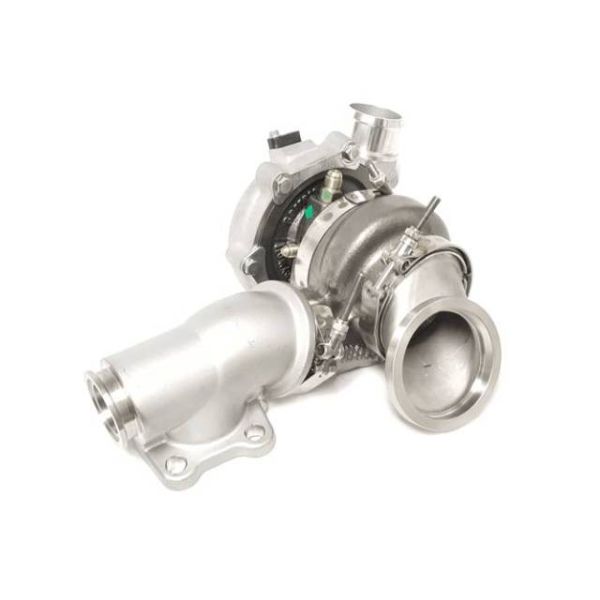

Focus ST Garrett G30-660 Turbo Upgrade Kit - EWG - .61AR | ATP
TAGS: 2013, 2014, 2015, 2016, 2017, 2018, 2019 Focus STGarrett G30-660 Turbo Upgrade Kit, EWG, .61AR, ATP-FOC-B15
Details
Focus ST ATP Garrett G30-660 Turbo Upgrade Kit - EWG - .61AR - ATP-FOC-B15
The Garrett G-Series G30-660 .61 A/R turbo kit for the Ford Focus ST 2.0L Ecoboost. Bolt on, stock location externally wastegated upgrade turbo solution. 660HP from a small frame package!
• Stock Location, Direct Bolt-on
• Externally Wastegated
• Built-in external wastegate port (Tial MVS, Precision 39 and Compgate 40)
• V-band flanged turbo adapter (NOW Stainless Steel)
• Any stock turbo flanged downpipe will fit
• Any stock placement intake pipe will fit*.
• Any stock placement charge pipe will fit*.
• New steel braided oil feed and coolant lines provided
• Fits stock oil drain tube
Product Specifications:
• Compressor Wheel Inducer: 54mm
• Compressor Wheel Exducer: 67mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.70
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
Product Applications:
+2013 Ford Focus ST
+2013 Ford Fusion 2.0L Ecoboost
Please Note:
Make sure your engine is 'built' to run this potent turbo combination. This combination is a special offering with the large frame compressor housing. The turbo clears the engine block but modifications are needed to the intake plumbing due to the larger 4" inlet on the compressor housing.
Applicable Garrett Part Number:
880697-5001S
More Information
| Part Number | ATP-FOC-B15 |
|---|---|
| Brand | ATP Turbo |
| Type of Part | Turbo Upgrades |
| Engine Fitment | 2.0L Ecoboost |
| Length | 26 |
| Width | 16 |
| Height | 16 |
| Weight | 45.000000 |
