Focus ST Garrett G30-770 Turbo Upgrade Kit - EWG - .83AR | ATP
TAGS: 2013, 2014, 2015, 2016, 2017, 2018, 2019 Focus ST Garrett G30-770 Turbo Upgrade, EWG, .83AR, ATP-FOC-B12
Details

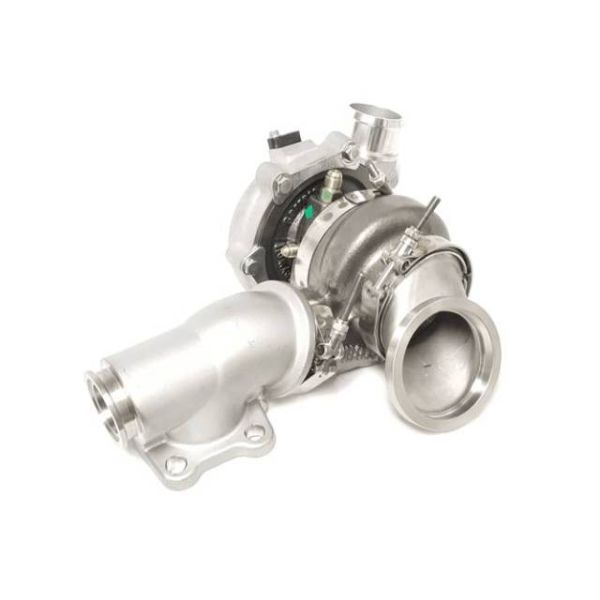

Focus ST ATP Garrett G30-770 Turbo Upgrade Kit - EWG - .83AR - ATP-FOC-B12
The Garrett G-Series G30-770 .83 A/R turbo kit for the Ford Focus ST 2.0L Ecoboost. Bolt on, stock location externally wastegated upgrade turbo solution. 770HP from a small frame package!
• Ultra High Flow G-Series Compressor Wheel
• Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
• Includes -4AN oil feed fitting and -6AN coolant/water fittings
• Stock Location, Direct Bolt-on
• Externally Wastegated
• Built-in external wastegate port (Tial MVS, Precision 39 and Compgate 40)
• V-band flanged turbo adapter (NOW Stainless Steel)
• Any stock turbo flanged downpipe will fit
• Any stock placement intake pipe will fit*. *Modifications might be needed to accommodate the large frame comp housing.
• Any stock placement charge pipe will fit*. *Modifications might be needed to accommodate the large frame comp housing.
• New steel braided oil feed and coolant lines provided
• Fits stock oil drain tube
Product Specifications:
• Compressor Wheel Inducer: 58mm
• Compressor Wheel Exducer: 71mm
• Compressor Wheel Trim: 65
• Large E Frame Compressor Housing A/R: 0.72 with 4" inlet and anti-surge
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
Product Applications:
+2013 Ford Focus ST
+2013 Ford Fusion 2.0L Ecoboost
Please Note:
Make sure your engine is 'built' to run this potent turbo combination. This combination is a special offering with the large frame compressor housing. The turbo clears the engine block but modifications are needed to the intake plumbing due to the larger 4" inlet on the compressor housing.
Applicable Garrett Part Number:
880697-5009S
More Information
| Part Number | ATP-FOC-B12 |
|---|---|
| Brand | ATP Turbo |
| Type of Part | Turbo Upgrades |
| Engine Fitment | 2.0L Ecoboost |
| Length | 26 |
| Width | 16 |
| Height | 16 |
| Weight | 45.000000 |
