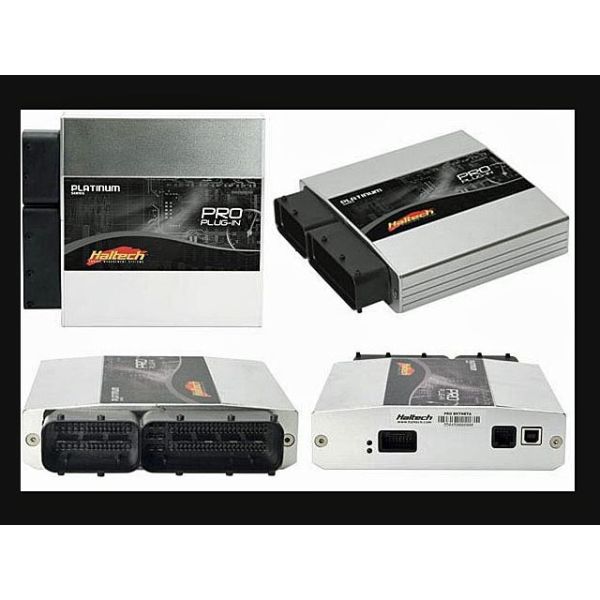

Forte Haltech Platinum Pro EMS
Details
Forte Haltech Platinum Pro EMS for 2010-2013 Kia Forte MT Only - HT-055045 Includes:
Platinum Pro Plug-in Pro Plug-in ECU
TurboKits.com Custom 2.5bar Map Sensor
Extension Harness to Mount in Cabin
Solid Base Map Ready for BOOST!
USB Cable
Programming Software CD
Quick Start Guide
Instruction Manual (on CD)
It doesn't get much easier than this. 100% full control over your Forte at your fingertips, with a VERY SOLID base map! Grab your TurboKits.com Turbo Kit, Install Haltech Pro and head to the DYNO... Get Ready!
Features:
• Direct plug and play replacement of the OEM ECU, No re-wiring necessary
• Uses the vehicles standard sensors & engine hardware
• Electronic Throttle Control - (Drive By Wire) with Cruise Control
• Retains instrument panel functionality via CAN communications
• Windows 2000, XP, Vista, Windows 7 compatible software
• Real time programming, instant hesitation free adjustment while engine is running
• Fully user definable 32 x 32 mapping with over 30 correction tables available
• Tuning via Volumetric Efficiency (VE) or Injection time
• OBDII Diagnostic Trouble Code Storing & Check Engine Light Control – Generic OBDII protocol Only
• Wideband “auto tuning” using user definable target AFR table
• USB and CAN Communication Port
Factory Outputs:
• 4 x Fuel Injector outputs (Peak & Hold)
• 4 x Ignition outputs (15A Internal)
• Electronic Throttle Control (DBW)
• AC Clutch Relay
• Check Engine Light
• Fuel Pump
• Thermo Fan Outputs Cruise Control
• Factory Inputs: MAP sensors Throttle Position Sensor Knock Detection Sensor
• Narrow Band Oxygen sensor
• Coolant Temperature sensor
• Vehicle Speed Sensor
• Air Temperature sensor Power Steering Switch Oil Temperature Sensor
• Brake Switch Clutch Switch
• Expansion I/O: 4 x Analogue Voltage Inputs, 1 x Digital Input, 4 x Digital Outputs
• Configurable for: Aux Rev Limiter Exhaust Gas Temperature Sensors Air Temperature Switch
• Flat Shift Fuel Temperature Sensors
• Aux Fuel Pump
• NOS Enable Oil Temperature Sensors
• Boost Control
• Fuel Pressure Sensor
• Diff Temperature Sensor
• Battery Light
• External Map Sensor (Up to 5 Bar)
• Gearbox Temperature Sensor
• Generic Duty Output
• Oil Pressure Sensor
• Generic Temperature Sensors
• Nitrous Activation Switch
• Wideband O2 Sensors
• Discrete ON/OFF Switches
• Flex Fuel Sensor
Plus much more …
Expansions I/O:
Up to 36 more I/O channels are available using the optional Haltech I/O 12 and TCA 2/4 CAN Devices -
Functions:
• Closed Loop O2 Control
• Knock Control
• Long Term Fuel Trim
• Rev Limiter
• Closed/Open Loop Boost Control
• Gear Setup
• Nitrous Activation Output
• Over Boost protection
• Fuel Composition (E85/Flex Fuel)
• Speed Limiter
• Antilag Launch
• Decel Cut
Correction Tables:
• Fuel Ignition Boost
• Air Temperature Correction
• Air Temp Duty Correction
• Coolant Temperature Correction
• Map Correction
• Zero Throttle Gear Correction
• Cylinder Trim TPS Correction
• Generic Correction
• Gear Correction
Miscellaneous: Data Logging:
• 448Kb of onboard data logging, Storage for approx 40 minutes at 10 logs per seconds, 6 channels of data
• Max 20 channels logging capability
• Tune can be password protected in software
• Rugged anodized aluminum casing
Factory Functions:
• Not Supported: Immobilizer Traction Control
More Information
| Part Number | HT-055045 |
|---|---|
| Brand | Haltech |
| Type of Part | Engine Management |
| Engine Fitment | 2.0L & 2.4L (MT Only) |
| Length | 4.0 |
| Width | 18.0 |
| Height | 10.0 |
| Weight | 25.000000 |
