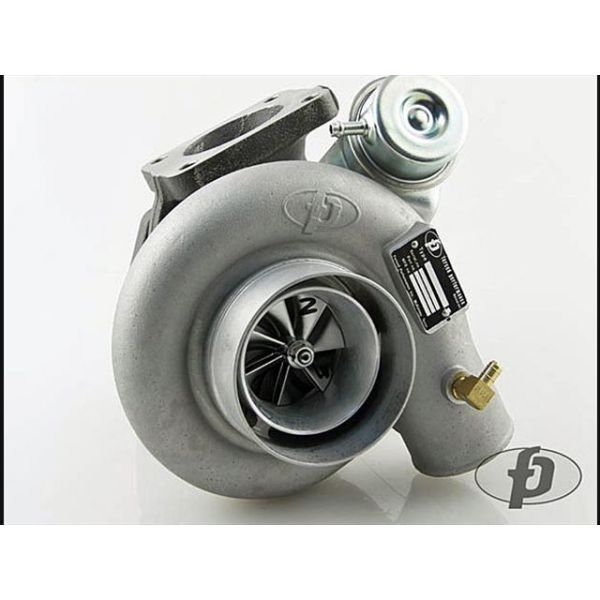

FP GREEN Journal Bearing Turbocharger
Details
DSM JB Green
Compressor wheel - 73HTZ
Flow rating - 57LB per minute
CW Measurements - 52.6MM Inducer / 73MM Exducer
TW Measurements - 60.8MM Inducer / 54MM Exducer
Compressor Housing - 84MM Flow Advancement Port Cover
Turbine Housing - FP 8CM
CHRA - FP Journal Bearing
Oil Line - Not Included
The FP GREENâ„¢ for DSM features our 73HTAâ„¢ billet compressor wheel along with an 84mm Flow Advancement Port compressor cover. The 73HTAâ„¢ has a flow rating of 57lb/min and is capable of producing upwards of 540hp. This journal bearing turbo is mated to an 8cm turbine housing that can be configured to run with an internal wastegate or external wastegate.
This turbo requires that oil be fed off the filter housing which can be accomplished by purchasing our 1G Oil Supply Line.
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger we cannot guarantee a delivery date or ETA.
More Information
| Part Number | 2015030, 2015032, 2015034 |
|---|---|
| Brand | Forced Performance |
| Type of Part | Turbo Upgrades |
| Engine Fitment | 4G63 |
| Length | 12.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 35.000000 |
