MHI TF06-18K Turbo Upgrade
TAGS: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, Mitsubishi EVO X, MHI TF06-18K Turbo Upgrade, 49S36-07000
Details

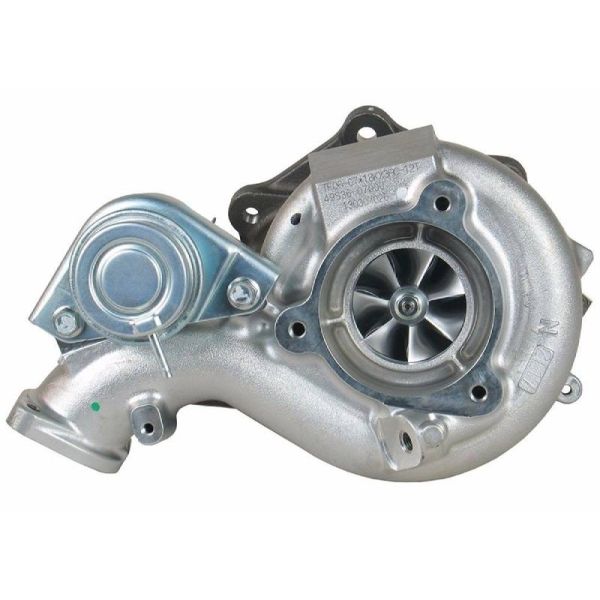

2008-2016 EVO X (EVO 10) 4B11T MHI TF06-18K Turbo Upgrade - 49S36-07000
Straight out of Japan from our friends at MHI comes a new factory upgrade for the Mitsubishi Evolution X. Very little is shared with the stock turbo, this is a brand new design specifically for the EVO X.
Mitsubishi's OE high-performance bolt-on turbo upgrade for the Evolution X 4B11T will help you go faster while not sacrificing quality and reliability. Manufactured to OEM standards by Mitsubishi Heavy Industries (MHI), TF06-18K is designed for an ideal blend of response and top-end power in the stock frame. The billet 18KX3RC compressor wheel utilizes the latest-generation blade aero with 7 primary blades and 7 splitter blades for a max flow rate of 54lb/min. The wastegate actuator is MHI's high-pressure 18PSI actuator. Now in its third year and achieving cult status, this simple and stock-appearing turbo consistently outperforms many higher-dollar setups.
COMPRESSOR SPECIFICATIONS:
• Compressor Type: Forged-Milled Wheel (FMW) Billet
• Compressor Wheel OD (exducer): 75mm
• Compressor Wheel Inducer: 55.1mm
• Max Flow Rate: 54 lb/min
• Compressor Housing: 3" hose coupler inlet, 2 bolt evoX outlet
TURBINE SPECIFICATIONS:
• Turbine type: 9-blade TF06 Inconel 713C Turbine Wheel
• Turbine Wheel Inducer: 61.5mm
• Turbine Wheel Exducer: 54mm
COMPATIBILITY LIST:
• 2008-2016 Mitsubishi Evo X 4B11T
More Information
| Part Number | 49S36-07000 |
|---|---|
| Brand | Mitsubishi |
| Type of Part | Turbo Upgrades |
| Length | 12.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 35.000000 |
Reviews
Top customer reviews
Fitment
2008-2016 EVO X (EVO 10) 4B11T MHI TF06-18K Turbo Upgrade - 49S36-07000
Straight out of Japan from our friends at MHI comes a new factory upgrade for the Mitsubishi Evolution X. Very little is shared with the stock turbo, this is a brand new design specifically for the EVO X.
Mitsubishi's OE high-performance bolt-on turbo upgrade for the Evolution X 4B11T will help you go faster while not sacrificing quality and reliability. Manufactured to OEM standards by Mitsubishi Heavy Industries (MHI), TF06-18K is designed for an ideal blend of response and top-end power in the stock frame. The billet 18KX3RC compressor wheel utilizes the latest-generation blade aero with 7 primary blades and 7 splitter blades for a max flow rate of 54lb/min. The wastegate actuator is MHI's high-pressure 18PSI actuator. Now in its third year and achieving cult status, this simple and stock-appearing turbo consistently outperforms many higher-dollar setups.
COMPRESSOR SPECIFICATIONS:
• Compressor Type: Forged-Milled Wheel (FMW) Billet
• Compressor Wheel OD (exducer): 75mm
• Compressor Wheel Inducer: 55.1mm
• Max Flow Rate: 54 lb/min
• Compressor Housing: 3" hose coupler inlet, 2 bolt evoX outlet
TURBINE SPECIFICATIONS:
• Turbine type: 9-blade TF06 Inconel 713C Turbine Wheel
• Turbine Wheel Inducer: 61.5mm
• Turbine Wheel Exducer: 54mm
COMPATIBILITY LIST:
• 2008-2016 Mitsubishi Evo X 4B11T
