Details

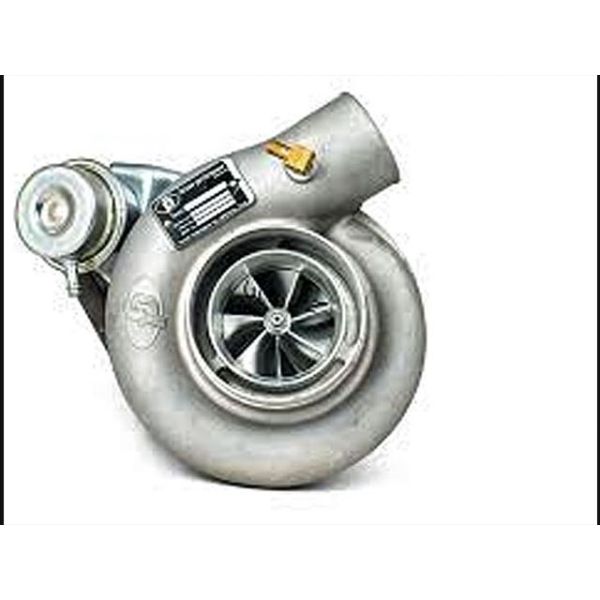

DSM JB Red
Compressor wheel - 76HTZ
Flow rating - 61LB per minute
CW Measurements - 54.8MM Inducer / 76MM Exducer
TW Measurements - 67.3MM Inducer / 58.8MM Exducer
Compressor Housing - 84MM Flow Advancement Port Cover
Turbine Housing - FP 8CM
CHRA - FP Journal Bearing
Oil Line - Not Included
This turbo requires that oil be fed off the filter housing which can be accomplished by purchasing our 1G Oil Supply Line.
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger we cannot guarantee a delivery date or ETA.
More Information
| Part Number | 2015040, 2015042, 2015044 |
|---|---|
| Brand | Forced Performance |
| Type of Part | Turbo Upgrades |
| Engine Fitment | 4G63 |
| Length | 12.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 35.000000 |
