Full Race EcoBoost V2 Intercooler Kit
Details
2011-2014 Ford F-150 V2 Intercooler
Applications
2011-2012 F150 EcoBoost with OEM turbos
2013-2014 F150 EcoBoost with OEM eBOV
2011-2014 F150 EcoBoost with aftermarket BOV
The addition of a high performance air-to-air intercooler is an important bolt-on upgrade for turbocharged Ford EcoBoost engines. Also known as the ‘C-A-C’ (Charge Air Cooler) we relocate the intercoler up high in the grille, for increased fresh airflow and to keep out of harm’s way. Independent Datalogs show OEM coolers reaching 190F at max load, compared to ambient with only the Full-Race Intercooler upgrade. We use efficient and durable bar-and-plate intercoolers with optimized Fin pitch, and expertly TIG welded gussetted brackets / endtanks in precise fixtures. The lower mounting beam is hand-fabricated from high strength steel and powder coated black. This intercooler uses 3″ inlet / 3″ outlet and is available with water/meth bungs on the coldside charge pipe. Each intercooler is individually pressure tested to 50 psi before shipping.
ford-f-150-ecoboost-front-mount-intercooler-kit-1-content-15 ford-f-150-ecoboost-front-mount-intercooler-kit-1-content-16 ford-f-150-ecoboost-front-mount-intercooler-kit-1-content-18 ford-f-150-ecoboost-front-mount-intercooler-kit-1-content-19

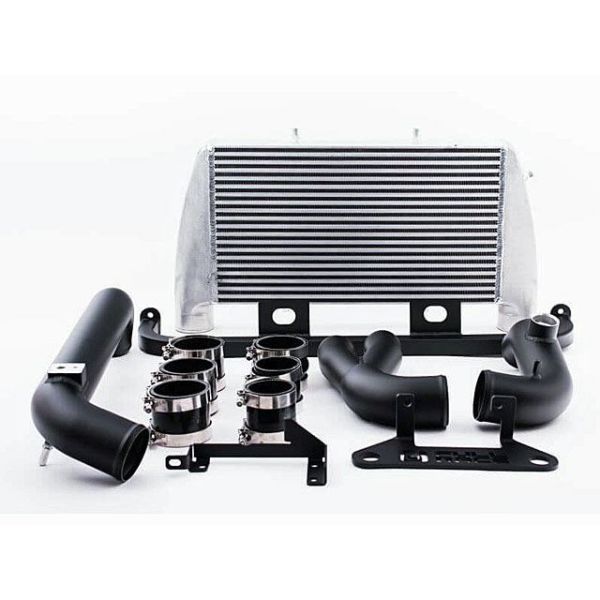

The Full-Race Ford F-150 EcoBoost Intercooler / CAC Upgrade Kit Includes:
Front Mount Intercoooler core with >1000cfm flow rate for <1psi pressure drop at 600+hp airflow levels. 70% more internal flow area than stock, using oversized 10mm charge air and 10mm ambient air paths (compared to the stock 6.5mm air paths)
Intercooler Mounting Beam
Aluminum Charge Piping (Hot and Cold Side)
2-ply Couplers and t-bolt clamps
Horn Relocation Bracket
Ford F-150 EcoBoost Front Mount Intercooler Kit Features:
Direct Replacement: Plug-and-Play – No tuning required!
High efficiency core designed specifically for the 3.5L V6 EcoBoost engine
Hand fabricated, professionally TIG welded endtanks and mounting tabs with bead-rolled charge pipes
Optional aluminum bungs on charge pipe to suit Water/Meth injection nozzles
Retains OEM sensors and purge solenoid fittings
No cutting or permanent modifications required – Direct Bolt On
Optional Black Powder Coating on intercooler for stealth appearance
Allows EcoBoost F150’s to use a off-road prerunner bumper, approved snowplow mounts and other accessories
WARN Winch Compatibile using Rough Country 1010 hidden-winch mounting plate
F150 is a tough truck that will be subjected to work site and off-road abuse – so strength and durability are mandatory. OEM ecoboost intercoolers use thin aluminum cores crimped with plastic endtanks. This design is low cost, easy to manufacture, and offers adequate cooling for the stock turbos. However high-performance and larger turbos can overwork the stock core, causing ‘heatsoak’ (intake air temperatures rise uncontrollably) and a corresponding reduction in power. In high humidity or rainy environments, the stock intercooler position can lead to condensation water building-up inside the stock cooler. Upon sudden acceleration and boost, this water can be introduced into the engine causing a misfire event. If you have experienced this often, we recommend using a mechanical vent-to-atmosphere BOV (blow-off valve) on the lower charge pipe, after the intercooler. These can help evacuate moisture from the charge air stream before it enters the engine’s throttle body.
Note: 2013-2016+ Applications which convert from eBOV to Mechanical BOV (TurboSmart or TiAL) – look to see if your intake manifold has an unused vacuum nipple behind the TB. If not, our TB spacer -or- PCV delete are recommended.
Customer Testimonials:
“The Full-Race Intercooler WORKS. The data showed a drop from 190F IAT2 to almost ambient on a 100% stock truck, changing only the cooler” –Matt A. (SCT/Bullydog lead EcoBoost calibrator)
“I just wanted to let you guys know that y’all make a great product. The workmanship is outstanding, the welds are on point, and the intercooler is just plain badass! I have a 2011 ecoboost and I opted for the bov – it sounds awesome!! I also polished it to a mirror, looks great behind my black grille. thanks again”
“I thought I would send some pics of the intercooler on my truck if you needed anymore for advertising. This thing is amazing and keeps my IAT2 temps within 1* of ambient air temps not matter how hot outside. I truly love the product and how it looks on the truck also. Thanks. -Don Y
More Information
| Part Number | FR-IC-ECO-GEN2-EBOV-11 |
|---|---|
| Brand | Full Race |
| Type of Part | Intercoolers |
| Engine Fitment | 3.5L |
| Length | 12.0 |
| Width | 40.0 |
| Height | 24.0 |
| Weight | 30.000000 |
