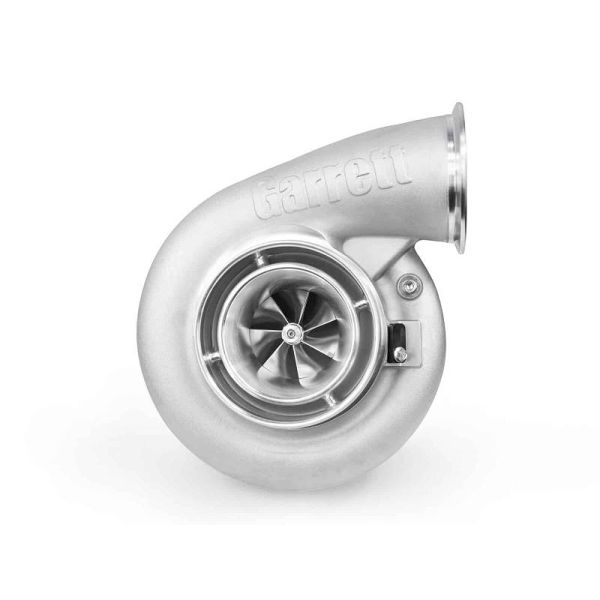

G-XRace Garrett 64.9mm GXR40-64, Ball Bearing Turbocharger, 1150HP Turbo, XBoost Technology, 934173-5005S, T4, Divided, V-Band / V-Band
*Interchangable with your current G40 G Series turbo. Buy only the Supercore and drop it in.
G-XRace GXR40-64 Features:
• XBoost Technology increases power and performance
• +23% compressor flow (GXR40-64 compared to G40-900)
• Enhanced pressure ratio capability and higher boost pressure
• Increased efficiency at high flow rates
• Lower intake temperature
• Lightweight aluminum backplate
• Fully machined flange-style speed sensor port for easy sensor installation and monitoring turbo speed
• Utilizes the same twin-scroll T4 and V-Band turbine housings as G-Series to enable an easy upgrade
Applicable Garrett GXR40 Part Numbers:
- G-XRace GXR40-64 64.9mm Supercore - 934173-5005S
- G-XRace GXR40-64 T4, Divided, .85 A/R - 757707-0032
- G-XRace GXR40-64 T4, Divided, .95 A/R - 757707-0033
- G-XRace GXR40-64 T4, Divided, 1.06 A/R - 7757707-0034
- G-XRace GXR40-64 T4, Divided, 1.19 A/R - 757707-0035
- G-XRace GXR40-64 V-Band Inlet / V-Band Outlet, .85 A/R - 757707-0027
- G-XRace GXR40-64 V-Band Inlet / V-Band Outlet, .95 A/R - 757707-0028
- G-XRace GXR40-64 V-Band Inlet / V-Band Outlet, 1.06 A/R - 757707-0029
- G-XRace GXR40-64 V-Band Inlet / V-Band Outlet, 1.19 A/R - 757707-0030
Engine Characteristics
Min HP: 500
Max HP: 1150
Min Displacement: 2.0L
Max Displacement: 6.0L
Compressor Wheel Specs
Compressor Exducer (mm): 88
Compressor Wheel Material: Forged Fully Machined
Compressor A/R: .85
Compressor Trim: 53
Turbine Wheel Specs
Turbine Inducer (mm): 77
Turbine Exducer (mm): 70
Turbine Trim: 84
Turbine Wheel Material: Inconel
G-XRace GXR40-64 Turbocharger Info
Frame Size: 40
Rotation: Standard
Cooling: Oil & Water Cooled
Wastegate: External
Bearing: Ceramic Dual Ball Bearing
Winners are Built - Winners aren’t born – they are built. Reputations are forged through skill, speed and consistency. Racers push their skills, their cars, and their turbos to extreme limits. When the stakes are high, only the best turbo will take you to the finish line. Garrett G-XRace is built for those who know that winning comes from being the quickest, pass after pass, race after race.
Powered by Decades of Leadership in Motorsport - If you want to be the quickest, the G-XRace Series is your ultimate advantage. Born from decades of powering professional motorsport winners, this turbocharger carries a legacy of proven success. It’s made for racers who push the limits to the extreme – and win.
A Heritage of Innovation - Backed by over 70 years of engineering and innovation, G-XRace turbochargers are engineered by a global team of 1300 engineers across five R&D centers for xtreme durability and xtreme performance.
WARNING: Maximum allowable turbocharger speed is 109krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
More Information
| Part Number | 934173-5005S, 757707-0027, 757707-0028, 757707-0029, 757707-0030, 757707-0032, 757707-0033, 757707-0034, 757707-0035 |
|---|---|
| Brand | Garrett |
| Type of Part | G-XRace Series |
| Length | 16 |
| Width | 14 |
| Height | 10 |
| Weight | 40.000000 |
