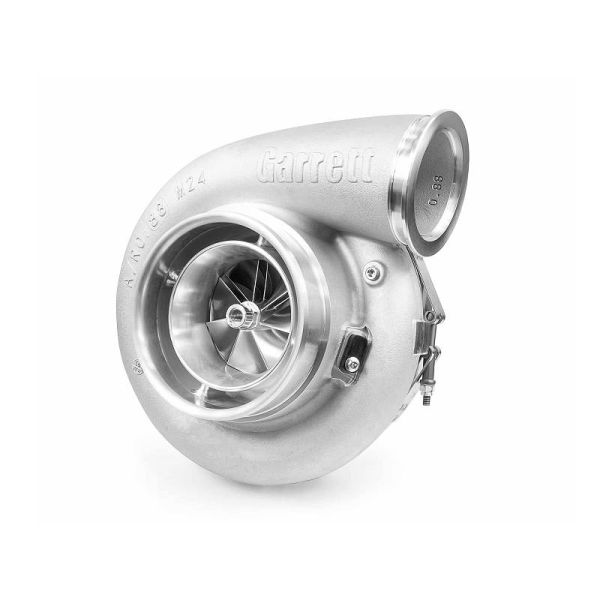

G-XRace GXR55-88 106TW Turbo (88.9mm) - 2350HP
Price Match Guarantee
Found it for less but value our service?
Details
G-XRace Garrett 88.9mm GXR55-88, 106mm Turbine Wheel, 0.18" or 0.25" Map Groove, Ball Bearing Turbocharger, 2350HP Turbo, XBoost Technology, 934174-5002S, 934174-5007S, T6, Open, V-Band / V-Band
*Interchangable with your current G55 G Series 106mm Turbine Wheel turbo. Buy only the Supercore and drop it in.
G-XRace GXR55-88 106mm Turbine Features:
• XBoost Technology increases power and performance
• +21% compressor flow (GXR55-88 compared to G55-1950)
• Select either 0.18" or 0.25" Map Groove
• Enhanced pressure ratio capability and higher boost pressure
• Increased efficiency at high flow rates
• Lower intake temperature
• Lightweight aluminum backplate
• Fully machined flange-style speed sensor port for easy sensor installation and monitoring turbo speed
• For use in drag race classes LDR (Limited Drag Radial), X275, and classes with 88mm compressor inducer rule.
Please verify class rules before purchasing
Applicable Garrett GXR55 Part Numbers:
- G-XRace GXR55-88 88.9mm Supercore w- 106mm Turbine Wheel and 0.18" Map Groove - 934174-5002S
- G-XRace GXR55-88 88.9mm Supercore w- 106mm Turbine Wheel and 0.25" Map Groove - 934174-5007S
- G-XRace GXR55-88 w- 106mm Turbine Wheel, T6, Open, 1.00 A/R - 761208-0071
- G-XRace GXR55-88 w- 106mm Turbine Wheel, T6, Open, 1.12 A/R - 761208-0072
- G-XRace GXR55-88 w- 106mm Turbine Wheel, T6, Open, 1.24 A/R - 761208-0073
- G-XRace GXR55-88 w- 106mm Turbine Wheel, T6, Open, 1.40 A/R - 761208-0074
- G-XRace GXR55-88 w- 106mm Turbine Wheel, V-Band Inlet / V-Band Outlet, 1.24 A/R - 761208-0069
- G-XRace GXR55-88 w- 106mm Turbine Wheel, V-Band Inlet / V-Band Outlet, 1.40 A/R - 761208-0070
Engine Characteristics
Min HP: 1000
Max HP: 2350
Min Displacement: 3.0L
Max Displacement: 12.0L
Compressor Wheel Specs
Compressor Exducer (mm): 133
Compressor Wheel Material: Forged Fully Machined
Compressor A/R: .88
Compressor Trim: 44
Turbine Wheel Specs
Turbine Inducer (mm): 112
Turbine Exducer (mm): 106
Turbine Trim: 86
Turbine Wheel Material: Inconel
G-XRace GXR55-88 Turbocharger Info
Frame Size: 55
Rotation: Standard
Cooling: Oil & Water Cooled
Wastegate: External
Bearing: Ceramic Dual Ball Bearing
Winners are Built - Winners aren’t born – they are built. Reputations are forged through skill, speed and consistency. Racers push their skills, their cars, and their turbos to extreme limits. When the stakes are high, only the best turbo will take you to the finish line. Garrett G-XRace is built for those who know that winning comes from being the quickest, pass after pass, race after race.
Powered by Decades of Leadership in Motorsport - If you want to be the quickest, the G-XRace Series is your ultimate advantage. Born from decades of powering professional motorsport winners, this turbocharger carries a legacy of proven success. It’s made for racers who push the limits to the extreme – and win.
A Heritage of Innovation - Backed by over 70 years of engineering and innovation, G-XRace turbochargers are engineered by a global team of 1300 engineers across five R&D centers for xtreme durability and xtreme performance.
WARNING: Maximum allowable turbocharger speed is 84krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
More Information
| Part Number | 934174-5002S, 934174-5007S, 761208-0069, 761208-0070 761208-0071, 761208-0072, 761208-0073, 761208-0074 |
|---|---|
| Brand | Garrett |
| Type of Part | G-XRace Series |
| Length | 16 |
| Width | 14 |
| Height | 10 |
| Weight | 40.000000 |
