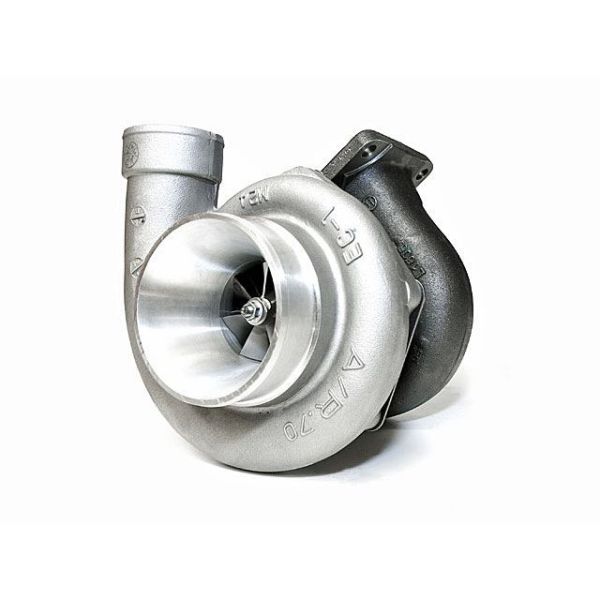

Garrett Ball Bearing T3 60-1 Turbo
The T3 60-1 is no longer available. However the GTW3476R 58/57MM (aka GTW5857R) is a direct swap out as a supercore, no need to replace the turbine housing!!
Details
Dual ball bearing Garrett 60-1 compressor (T04S housing) with 4" inlet and 2.5" outlet and T3 flanged Turbine. Stage III turbine wheel with T31 4-bolt exhaust housing. Oil and water cooled. Uses restricted oil inlet fitting. T3/4 drain flange. Coolant in/out required (14mm threads - same as GT series ball bearing). Great 550HP turbo.
This unit is usually in stock and ships withing 1-2 days.
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| $50 Extra | Divided T3 | V-Band | .78/1.06 | External Wastegate |  |
| 5 Bolt Option $50 Etxra | T3 | 4 or 5 Bolt | .48/.63/.82 | External Wastegate |  |
| No Extra Cost | T25 | 4 Bolt | .72 | External Wastegate |  |
| $50 Extra | Divided T3 | V-Band | .82/1.06 | External Wastegate |  |
| $145 Extra | T3 | Cosworth 3-Bolt | .72 | Internal Wastegate |  |
More Information
| Part Number | 757197-5005 |
|---|---|
| Part Includes | |
| Brand | Garrett |
| Type of Part | T Series |
| Length | 14.0 |
| Width | 12.0 |
| Height | 10.0 |
| Weight | 35.000000 |
Reviews
Fitment
Dual ball bearing Garrett 60-1 compressor (T04S housing) with 4" inlet and 2.5" outlet and T3 flanged Turbine. Stage III turbine wheel with T31 4-bolt exhaust housing. Oil and water cooled. Uses restricted oil inlet fitting. T3/4 drain flange. Coolant in/out required (14mm threads - same as GT series ball bearing). Great 550HP turbo.
This unit is usually in stock and ships withing 1-2 days.
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| $50 Extra | Divided T3 | V-Band | .78/1.06 | External Wastegate | |
| 5 Bolt Option $50 Etxra | T3 | 4 or 5 Bolt | .48/.63/.82 | External Wastegate | |
| No Extra Cost | T25 | 4 Bolt | .72 | External Wastegate | |
| $50 Extra | Divided T3 | V-Band | .82/1.06 | External Wastegate | |
| $145 Extra | T3 | Cosworth 3-Bolt | .72 | Internal Wastegate | |
