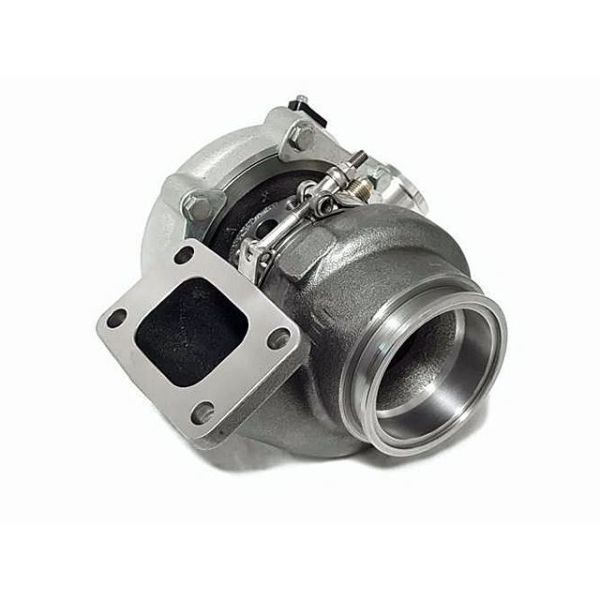

Garrett G25-660 G Series Turbo - T3 .61AR V-Band EWG
TAGS: Garrett G Series, G25-660 .61ar, T3, V-Band, External Wastegate, 660HP, 858161-5003S, ATP-HSG-642
Details
Garrett G25-660 G Series Ball Bearing Turbocharger .61AR T3 V-Band EWG Turbine Housing
"Spools like a 28, Powers like a 30"
In Stock, Shipping Now!
Product Description:
Garrett G-Series G25-660 advanced small frame ball bearing turbocharger with a .61 A/R T3 inlet and v-band outlet turbine housing. 660HP from a small frame package!
Ultra High Flow G-Series Compressor Wheel
Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Includes -4AN oil feed fitting and -6AN coolant/water fittings
Product Specifications:
Compressor Wheel Inducer: 54mm
Compressor Wheel Exducer: 67mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN
Garrett Part Number:
858161-5003S (Supercore), ATP-HSG-642
More Information
| Part Number | 858161-5003S, ATP-HSG-642 |
|---|---|
| Brand | Garrett |
| Type of Part | G Series |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 22.000000 |
| G Series Horsepower Range | G25-660 54mm (350-660HP) |
