Garrett G40-1150 71mm G Series Turbo
TAGS: Garrett G40-1150, 71mm, G Series Turbo, 1150HP, 860777-5002S
Details

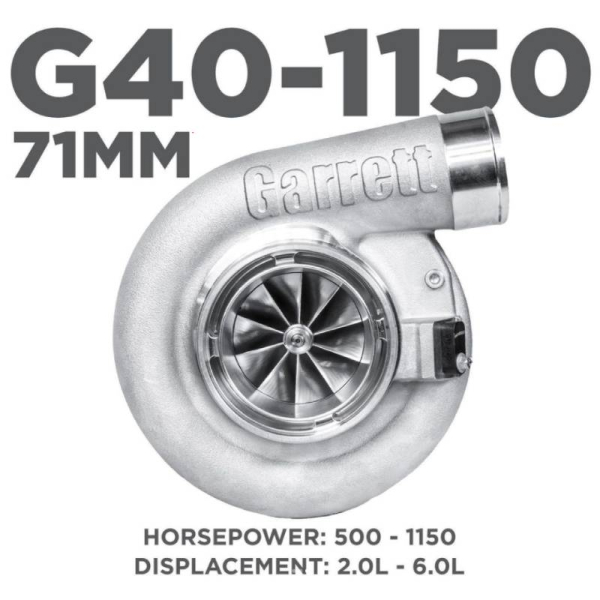

Garrett G40-1150 71mm G Series Turbo - 860777-5002S
Product Description:
• Garrett G40-1150-71mm Supercore w/ Compressor Housing - 860777-5002S
Product Features:
• Quick spooling, high horsepower solution for 2.0 liter up to 6.0 liter engine platforms
• G Series compressor aero increases flow up to 32% (compared to GTX4088R)
• Dual ceramic ball bearing with steel cages
• G Series turbine aero increases flow 16% (compared to GTX4088R)
• Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with super core
• Stainless steel turbine housings available with T4 twin scroll inlet
• T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models
Product Specifications:
• Compressor Wheel Inducer: 71mm
• Compressor Wheel Exducer: 88mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.80
• Turbine Wheel Inducer: 77mm
• Turbine Wheel Exducer: 70mm
• Turbine Wheel Trim: 84
Garrett Part Numbers:
• 860777-5002S
THE ALL NEW GARRETT G SERIES TURBOCHARGERS
Garrett G Series Highlights:
*EVOLUTIONARY ULTRA HIGH FLOW G-Series Turbine Wheel
*Advanced aerodynamics G Series Compressor Wheel
*Compact Standard Package
*The Results: +20% More Horsepower & Quicker Spool!!!
Introducing the next evolution in performance, the Garrett G Series Turbochargers. The Garrett G Series combines the latest performance turbocharger technology and advanced aerodynamic designs. The result, is the highest horsepower small frame turbocharger!!!
Garrett G Series Turbine Wheel: By incorporating the latest and advanced ULTA HIGH FLOW aerodynamic designs within the Garrett G Series Turbine Wheel, G Series models offer previously unimaginable power levels by frame size and improvements in spool! Made from Mar-M super alloy, the G Series Turbine Wheel withstands up-to 1050 degrees Celsius; +200 degrees Celsius over inconel turbine wheels.
More Information
| Part Number | 860777-5002S |
|---|---|
| Brand | Garrett |
| Type of Part | G Series |
| Length | 28 |
| Width | 13 |
| Height | 6 |
| Weight | 35.000000 |
| G Series Horsepower Range | G40-1150 71mm (500-1150HP) |
