Garrett G42-1200C G Series Turbo - 1.01AR T4 Divided
TAGS: Garrett G42-1200C G Series, 1.01ar T4 Divided V-Band, External Wastegate, 1200HP, 879779-5004S, 860778-5002S, 757707-0014
Found it for less but value our service?
Details

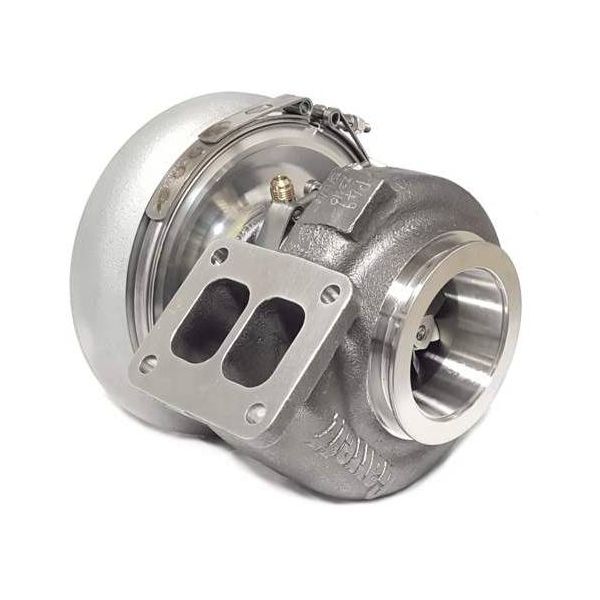

Garrett G42-1200C G series Ball Bearing Turbo - 1.01AR - T4 Divided/V-Band - 879779-5004S, 860778-5002S, 757707-0014
Product Description:
Garrett® G42-1200 compact turbo assembly kit with 1.01 T4 divided turbine housing. Capable of 1200HP!
Product Features:
Quick spooling, high horsepower solution for 2.0 liter up to 7.0 liter engine platforms
Ten blade, forged, fully-machined G Series compressor wheel with high flowing aero
Low inertia compressor wheel resulting in faster boost response
New turbine aero wheel flows 10% more and has peak efficiency of 77% (Compared to GTX42 at 74% with 1.01A/R)
Engineered with inconel super alloy to withstand operating temperatures up to 950C
Compact option is 4mm shorter axially and 29mm smaller radially than the standard G42
Product Specifications:
Compressor Wheel Inducer: 73mm
Compressor Wheel Exducer: 91mm
Compressor Wheel Trim: 65
Compressor Housing A/R: 0.90
Turbine Wheel Inducer: 82mm
Turbine Wheel Exducer: 75mm
Turbine Wheel Trim: 84
Garrett Part Numbers:
879779-5004S, 860778-5002S, 757707-0014
More Information
| Part Number | 879779-5004S, 860778-5002S, 757707-0014 |
|---|---|
| Brand | Garrett |
| Type of Part | G Series |
| Length | 18 |
| Width | 18 |
| Height | 18 |
| Weight | 35.000000 |
| G Series Horsepower Range | G42-1200 73mm (475-1200HP) |
